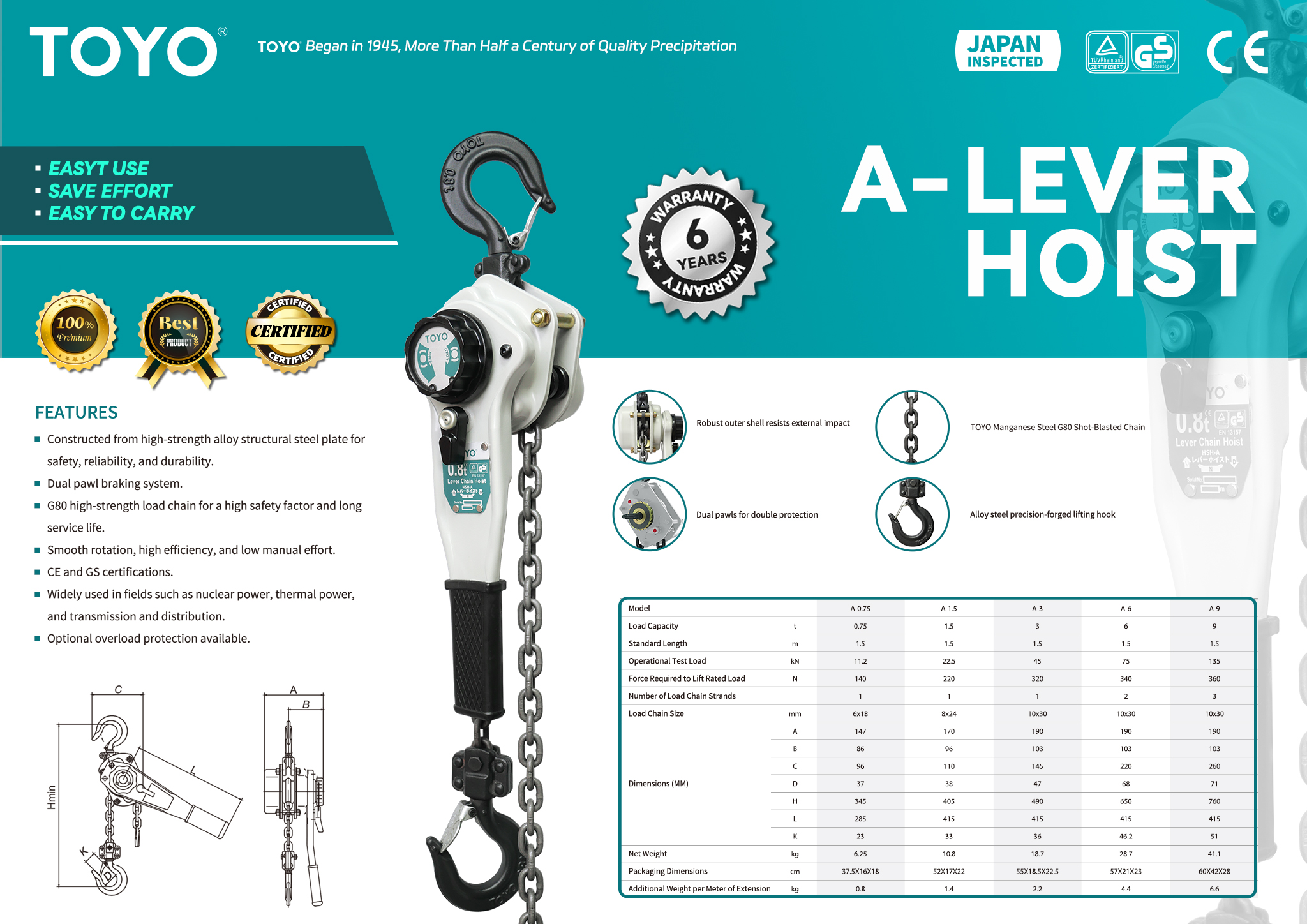

A Manual Lever Hoist

Constructed from high-strength alloy structural steel plate forsafety, reliability, and durability.
Dual pawl braking system.
G80 high-strength load chain for a high safety factor and longservice life.
Smooth rotation, high efficiency, and low manual effort.
CE and GS certifications.
Widely used in fields such as nuclear power, thermal power,
and transmission and distribution.
Optional overload protection available.

Specs of A Manual Lever Hoist

BASIC INTRODUCTION

It is made of high-strength alloy structural steel plates, equipped with a dual pawl braking system, and uses G80 high-strength load chains (TOYO manganese steel G80 shot-blasted chains). It has a precision-forged alloy steel lifting hook, and has obtained CE and GS certifications. An overload protection function is optionally

FEATURES

Constructed from high-strength alloy structural steel plate forsafety, reliability, and durability.Dual pawl braking system.
G80 high-strength load chain for a high safety factor and longservice life.
Smooth rotation, high efficiency, and low manual effort.
CE and GS certifications.
Widely used in fields such as nuclear power, thermal power,and transmission and distribution.
Optional overload protection available.

APPLICATION INDUSTRIES

The A-LEVER HOIST is widely used in fields such as nuclear power, thermal power, and power transmission and distribution. This manual lever chain hoist can be applied to relevant operation scenarios involving the lifting and handling of heavy objects in these industries.

Product parameters

Model		A-0.75	A-1.5	A-3	A-6	A-9
Load Capacity	t	0.75	1.5	3	6	9
Standard Length	m	1.5	1.5	1.5	1.5	1.5
Operational Test Load	kN	11.2	22.5	45	75	135
Force Required to Lift Rated Load	N	140	220	320	340	360
Number of Load Chain Strands		1	1	1	2	3
Load Chain Size	mm	6×18	8×24	10×30	10×30	10×30
Dimensions (MM)	A	147	170	190	190	190
	B	86	96	103	103	103
	C	96	110	145	220	260
	D	37	38	47	68	71
	H	345	405	490	650	760
	L	285	415	415	415	415
	K	23	33	36	46.2	51
Net Weight	kg	6.25	10.8	18.7	28.7	41.1
Packaging Dimensions	cm	37.5X16X18	52X17X22	55X18.5X22.5	57X21X23	60X42X28
Additional Weight per Meter of Extension	kg	0.8	1.4	2.2	4.4	6.6
