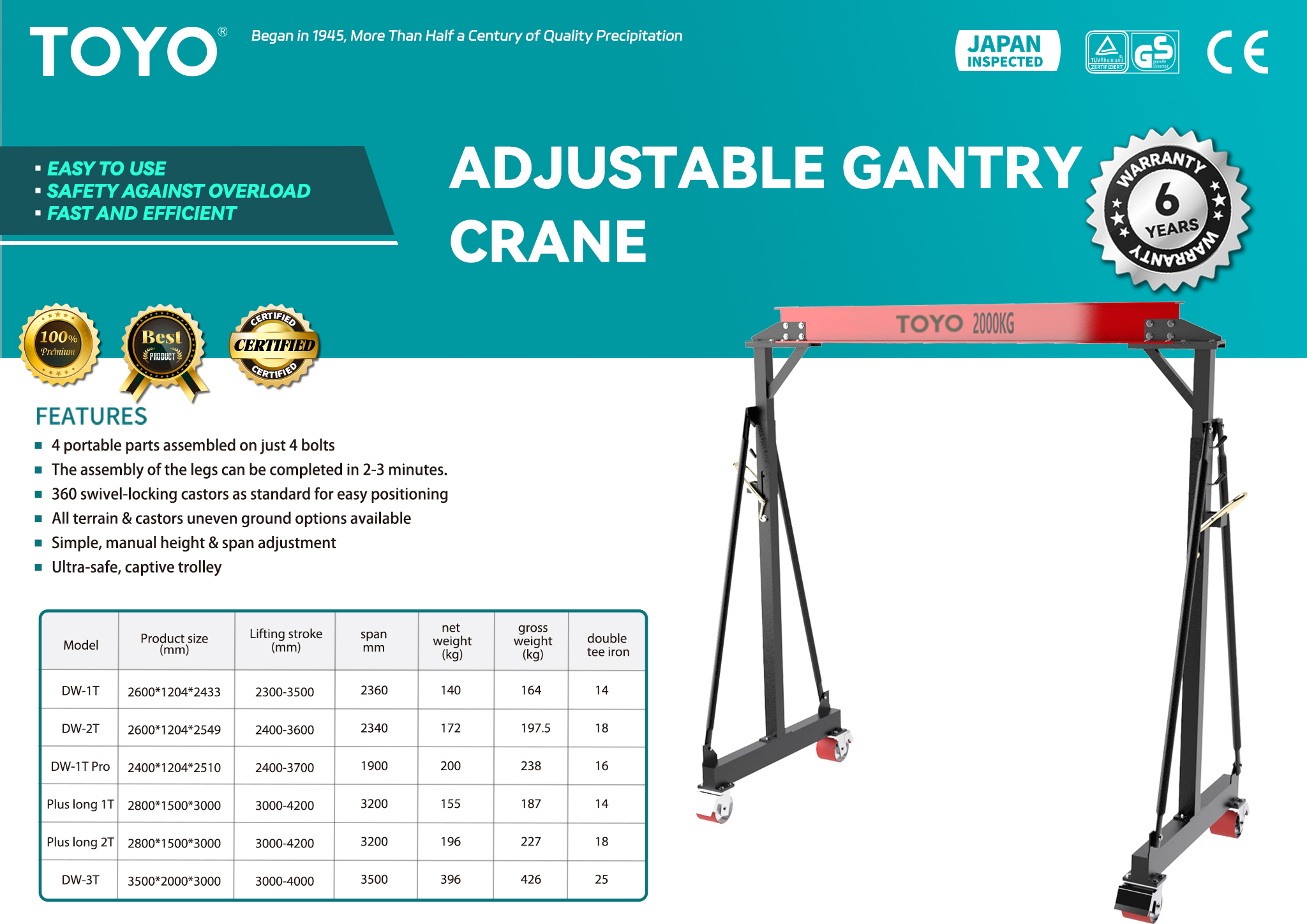

Adjustable Gantry crane

BASIC INTRODUCTION

Product Name: TOYO Adjustable Gantry crane
Component Composition: Consists of 4 portable parts, assembled with 4 bolts. Equipped with standard 360-degree swivel-locking castors. Options for all-terrain and castors suitable for uneven ground are available. It has the function of manual height and span adjustment and is an ultra-safe captive trolley type gantry crane.

FEATURES

This adjustable height gantry crane is

4 portable parts assembled on just 4 bolts
The assembly of the legs can be completed in 2-3 minutes.
360 swivel-locking castors as standard for easy positioning
All terrain & castors uneven ground options available
Simple, manual height & span adjustment
Ultra-safe, captive trolley

See our Crane Catalog for more info!

Product Details of adjustable height gantry crane

Specs of adjustable height gantry crane

Model	Product size (mm)	Lifting stroke (mm)	span mm	net weight (kg)	gross weight (kg)	double tee iron
DW-1T	260012042433	2300-3500	2360	140	164	14
DW-2T	260012042549	2400-3600	2340	172	197.5	18
DW-1T Pro	240012042510	2400-3700	1900	200	238	16
Plus long 1T	280015003000	3000-4200	3200	155	187	14
Plus long 2T	280015003000	3000-4200	3200	196	227	18
DW-3T	350020003000	3000-4000	3500	396	426	25

Application

Warehousing and Logistics：In warehouses and logistics centers, it’s used for goods loading, unloading, handling and storage. All – terrain castors allow use on various ground conditions, and manual adjustment helps with goods at different heights and positions.
Construction Industry：At construction sites, for lifting small building materials like steel and prefabricated components, its easy assembly and safety features make it a practical tool.
Maintenance and Repair：In places like auto repair shops and heavy – equipment maintenance workshops, it lifts and moves equipment or parts to be repaired. Simple operation and reliable safety boost maintenance efficiency and safety.
