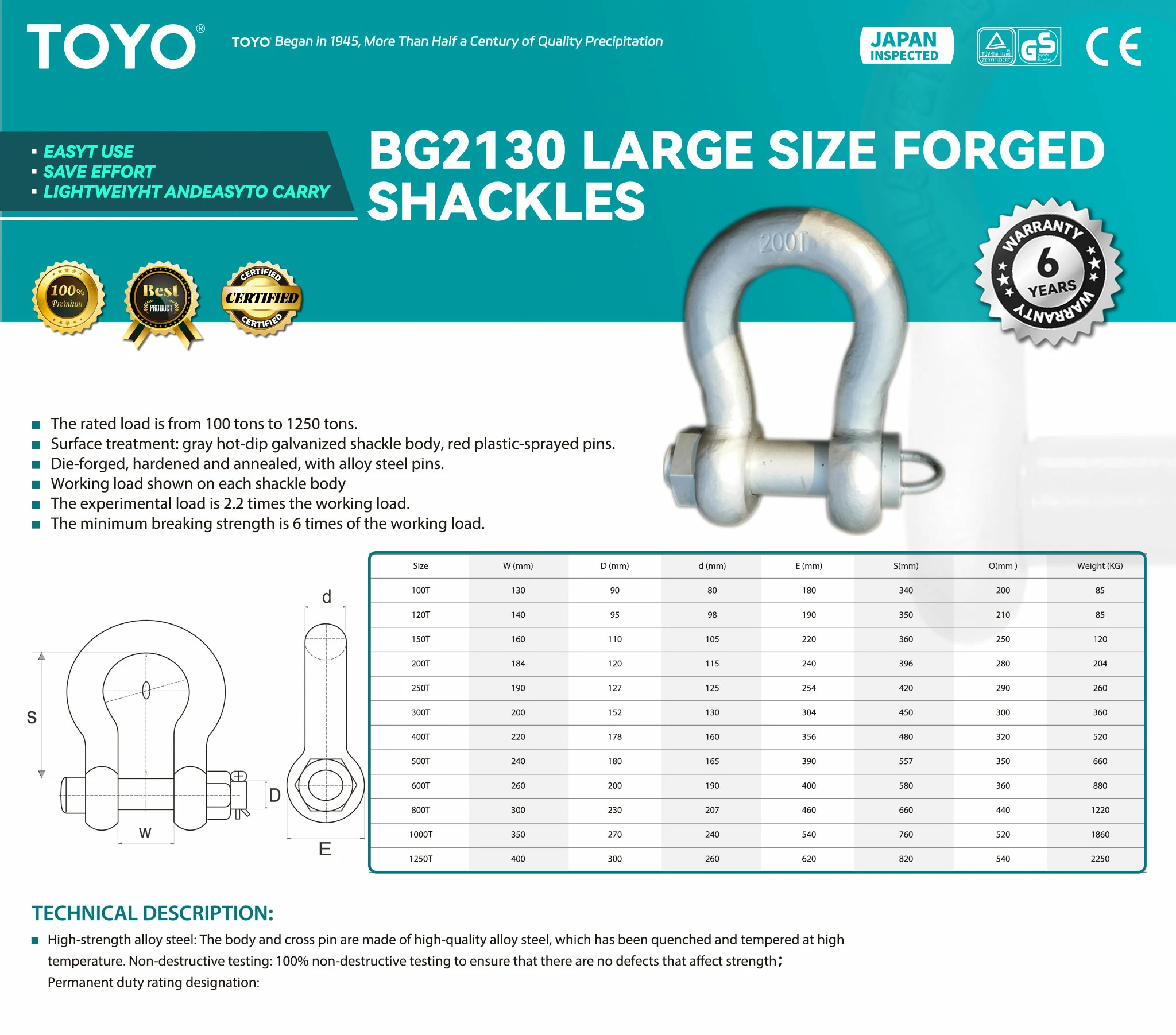

BG2130 Large size forged shackles

BASIC INTRODUCTION

Rated load range: From 100 tons to 1250 tons.
Surface treatment: The shackle body is gray hot-dip galvanized, and the pins are red plastic-sprayed.
Manufacturing process: Die-forged, hardened, and annealed. The pins are made of alloy steel.
Marking: The working load is shown on each shackle body.
Load-related data: The experimental load is 2.2 times the working load, and the minimum breaking strength is 6 times the working load.
Material: Both the shackle body and the cross pin are made of high-quality alloy steel that has been quenched and tempered at high temperature.
Inspection: 100% non-destructive testing is carried out.

Product Details

Specs

Size	W (mm)	D (mm)	E (mm)	S(mm)	O(mm )	Weight (KG)
100T	130	90	180	340	200	85
120T	140	95	190	350	210	85
150T	160	110	220	360	250	120
200T	184	120	240	396	280	204
250T	190	127	254	420	290	260
300T	200	152	304	450	300	360
400T	220	178	356	480	320	520
500T	240	180	390	557	350	660
600T	260	200	400	580	360	880
800T	300	230	460	660	440	1220
1000T	350	270	540	760	520	1860
1250T	400	300	620	820	540	2250

Application

Heavy-duty hoisting operations: Such as the installation, disassembly, and handling of large mechanical equipment. Its large rated load range can meet the hoisting needs of equipment with different weights.
Construction projects: In scenarios like bridge construction and high-rise building construction, it is used for hoisting and fixing building materials and components.
Shipbuilding and ship repair: Hoisting hull components during ship construction and hoisting heavy equipment during ship repair.
Mining operations: Used in the installation and maintenance of mining equipment, hoisting large mining machinery and components.
Port loading and unloading: Loading and unloading large goods at port terminals, such as containers and heavy mechanical equipment.

FEATURES

High strength: Made of high-strength alloy steel and heat-treated, it has high load-bearing capacity and anti-damage ability.
Excellent surface treatment: The hot-dip galvanizing and plastic spraying treatments enhance the corrosion resistance of the shackle and extend its service life.
Reliable quality: The die-forging process is combined with hardening and annealing treatments, and 100% non-destructive testing ensures that there are no defects affecting the strength.
Clear marking: The working load is clearly marked on the shackle body, making it easy to accurately judge during use.
Permanent duty rating designation: There is a permanent working duty rating designation, which is beneficial for long-term use and management.

See our Rigging and Sling Catalog for more info!
