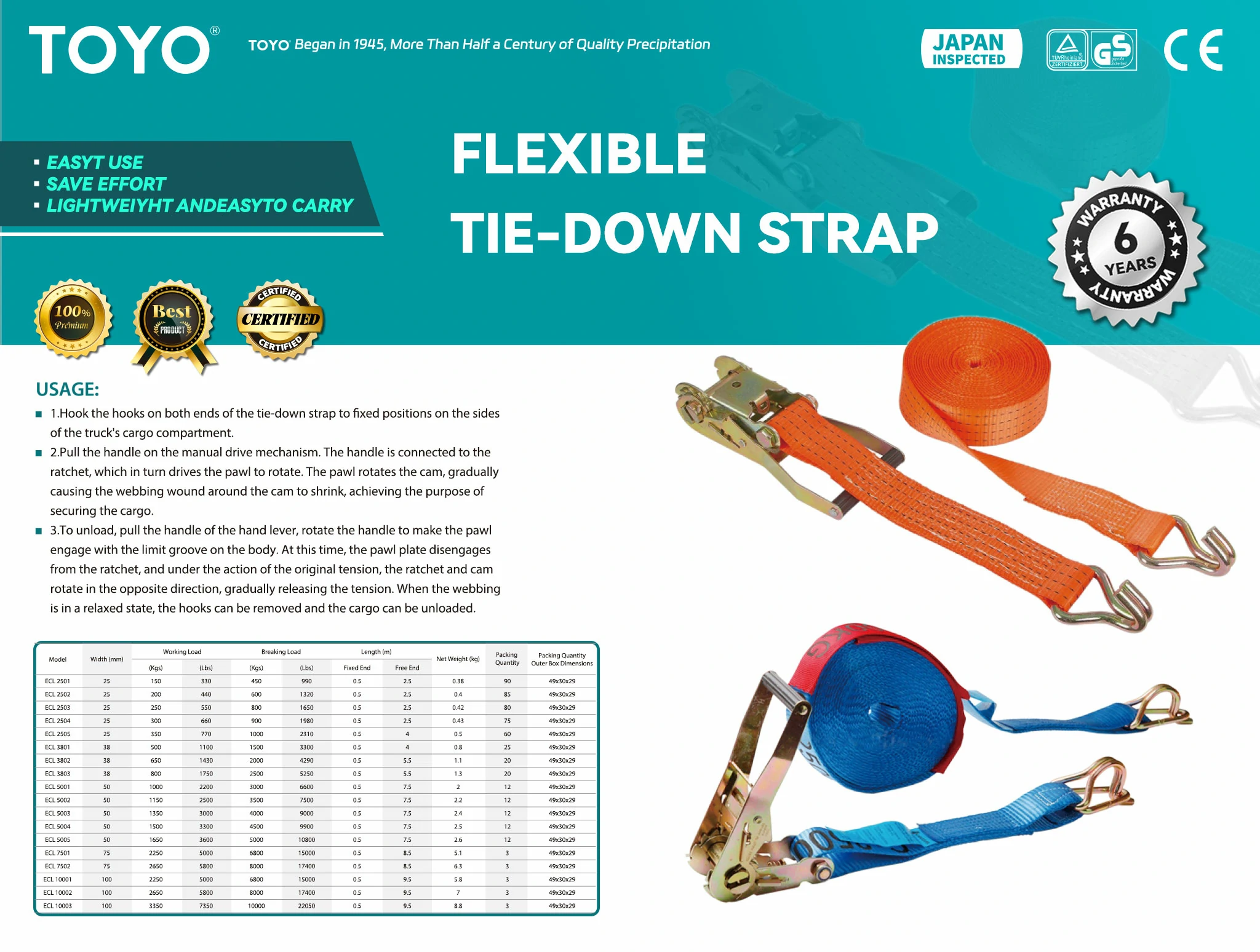

Flexible tie-down strap

Product Details

Specs

Model	Width (mm)	Working Load		Breaking Load		Breaking Load		Net Weight (kg)	Packing Quantity	Packing Quantity Outer Box Dimensions
Model	Width (mm)	(Kgs)	(Lbs)	(Kgs)	(Lbs)	Fixed End	Free End	Net Weight (kg)	Packing Quantity	Packing Quantity Outer Box Dimensions
ECL 2501	25	150	330	450	990	0.5	2.5	0.38	90	49x30x29
ECL 2502	25	200	440	600	1320	0.5	2.5	0.4	85	49x30x29
ECL 2503	25	250	550	800	1650	0.5	2.5	0.42	80	49x30x29
ECL 2504	25	300	660	900	1980	0.5	2.5	0.43	75	49x30x29
ECL 2505	25	350	770	1000	2310	0.5	4	0.5	60	49x30x29
ECL 3801	38	500	1100	1500	3300	0.5	4	0.8	25	49x30x29
ECL 3802	38	650	1430	2000	4290	0.5	5.5	1.1	20	49x30x29
ECL 3803	38	800	1750	2500	5250	0.5	5.5	1.3	20	49x30x29
ECL 5001	50	1000	2200	3000	6600	0.5	7.5	2	12	49x30x29
ECL 5002	50	1150	2500	3500	7500	0.5	7.5	2.2	12	49x30x29
ECL 5003	50	1350	3000	4000	9000	0.5	7.5	2.4	12	49x30x29
ECL 5004	50	1500	3300	4500	9900	0.5	7.5	2.5	12	49x30x29
ECL 5005	50	1650	3600	5000	10800	0.5	7.5	2.6	12	49x30x29
ECL 7501	75	2250	5000	6800	15000	0.5	8.5	5.1	3	49x30x29
ECL 7502	75	2650	5800	8000	17400	0.5	8.5	6.3	3	49x30x29
ECL 10001	100	2250	5000	6800	15000	0.5	9.5	5.8	3	49x30x29
ECL 10002	100	2650	5800	8000	17400	0.5	9.5	7	3	49x30x29
ECL 10003	100	3350	7350	10000	22050	0.5	9.5	8.8	3	49x30x29

Application

Road Freight Transport: It is suitable for trucks and other road – transport vehicles. When transporting various goods such as furniture, mechanical equipment, and building materials, it is used to secure the cargo, preventing it from sliding or colliding during transportation and ensuring the safe delivery of the goods.
Logistics and Warehousing: In logistics warehouses, it is used for the temporary fixation of goods in storage or transit, facilitating the handling, stacking, and loading/unloading of goods and improving the safety and efficiency of warehousing operations.
Small – scale Transport Vehicles: It can be applied to small trucks, pickup trucks, vans, etc., meeting the daily cargo – securing needs of individuals or small enterprises, such as transporting home appliances and decoration materials.
Special Transport Scenarios: When transporting irregularly – shaped, easily – rolling, or fragile goods, by reasonably adjusting the position and tightness of the strap, it can provide stable fixation and protection for the cargo. It is suitable for special scenarios such as the transportation of handicrafts and agricultural machinery equipment.

FEATURES

Easy to Operate: With its manual drive mechanism, simply pulling and rotating the handle enables quick securing and releasing of cargo. No complex tools are required, and the low operation threshold significantly improves work efficiency.
Secure Fastening: Through the coordinated operation of the ratchet, pawl, and cam, the webbing can be gradually tightened, firmly securing the cargo. This effectively prevents the cargo from shifting or swaying during transportation, ensuring transportation safety.
Flexible Adjustment: The tightness of the strap can be flexibly adjusted according to the size, shape, and quantity of the cargo, meeting various cargo – securing needs.
Convenient Release: When unloading, pulling the lever handle makes the pawl engage with the limit groove on the body. At this time, the pawl plate disengages from the ratchet. Under the action of the original tension, the ratchet and cam rotate in the opposite direction, quickly releasing the tension of the webbing for easy removal.

See our Rigging and Sling Catalog for more information
