Forged round ring

BASIC INTRODUCTION

TOYO FPL Forged pear-shaped link：Spray – coated surface (multiple colors), working load limit marked on body, max. guaranteed load 2.5x WLL, min. breaking strength 4x WLL.
WDS G80 Welded D-shackle：Spray – coated (various colors), working load limit displayed on body, max. guaranteed load 2.5x WLL, min. breaking strength 6x WLL.
FRR Forged round ring：Spray – coated surface (multiple colors), working load limit marked, max. guaranteed load 2.5x WLL.

Product Details

Specs

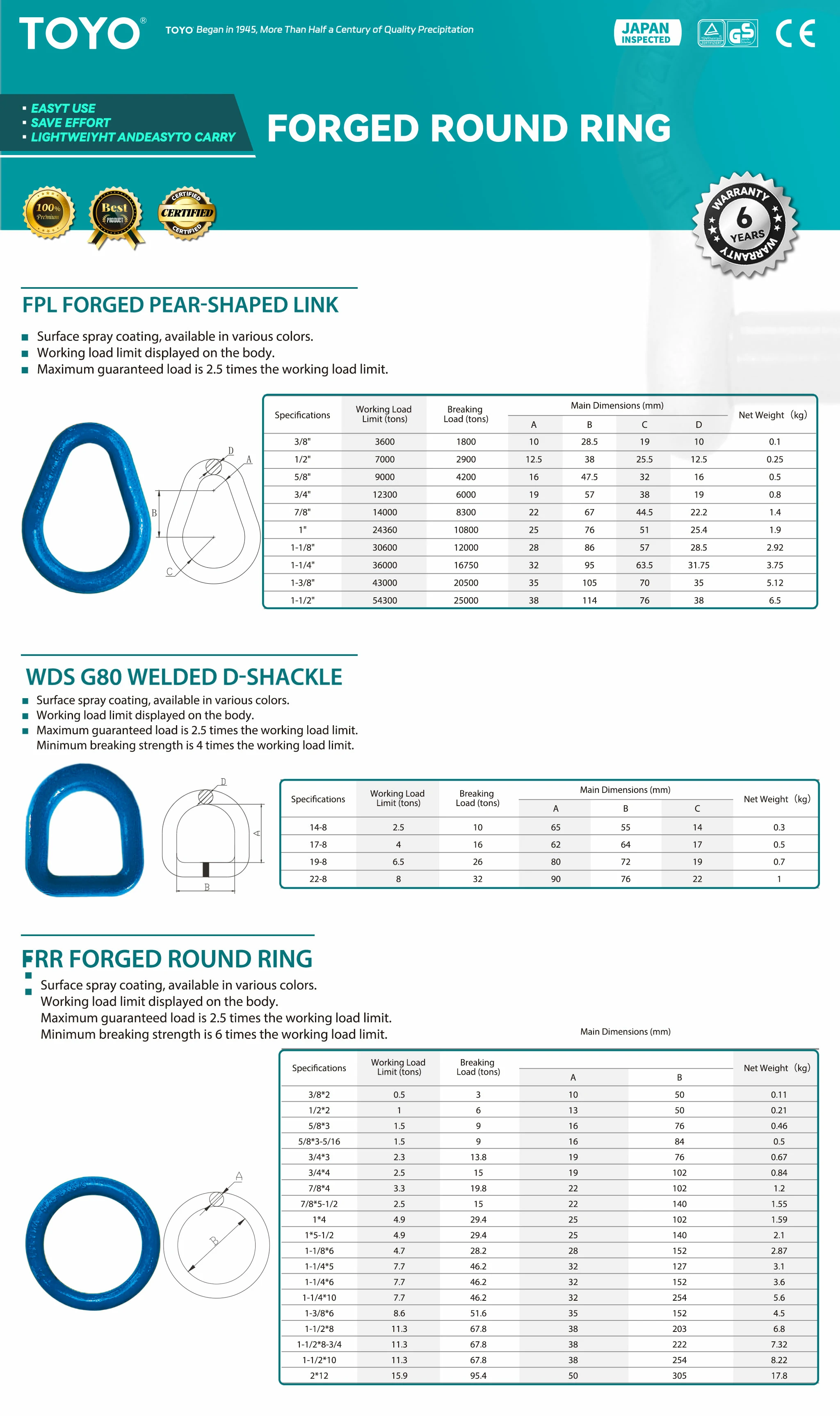

FPL Forged pear-shaped link

Specifications	Working Load Limit (tons)	Breaking Load (tons)	Main Dimensions (mm)			Net Weight（kg）
Specifications	Working Load Limit (tons)	Breaking Load (tons)	A	B	C	Net Weight（kg）
3/8″	3600	1800	10	28.5	19	0.1
1/2″	7000	2900	12.5	38	25.5	0.25
5/8″	9000	4200	16	47.5	32	0.5
3/4″	12300	6000	19	57	38	0.8
7/8″	14000	8300	22	67	44.5	1.4
1″	24360	10800	25	76	51	1.9
1-1/8″	30600	12000	28	86	57	2.92
1-1/4″	36000	16750	32	95	63.5	3.75
1-3/8″	43000	20500	35	105	70	5.12
1-1/2″	54300	25000	38	114	76	6.5

WDS G80 Welded D-shackle

Specifications	Working Load Limit (tons)	Breaking Load (tons)	Main Dimensions (mm)			Net Weight（kg）
Specifications	Working Load Limit (tons)	Breaking Load (tons)	A	B	C	Net Weight（kg）
14-8	2.5	10	65	55	14	0.3
17-8	4	16	62	64	17	0.5
19-8	6.5	26	80	72	19	0.7
22-8	8	32	90	76	22	1

FRR Forged round ring

Specifications	Working Load Limit (tons)	Breaking Load (tons)	Main Dimensions (mm)		Net Weight（kg）
Specifications	Working Load Limit (tons)	Breaking Load (tons)	A	B	Net Weight（kg）
3/8*2	0.5	3	10	50
1/2*2	1	6	13	50	0.21
5/8*3	1.5	9	16	76	0.46
5/8*3-5/16	1.5	9	16	84	0.5
3/4*3	2.3	13.8	19	76	0.67
3/4*4	2.5	15	19	102	0.84
7/8*4	3.3	19.8	22	102	1.2
7/8*5-1/2	2.5	15	22	140	1.55
1*4	4.9	29.4	25	102	1.59
1*5-1/2	4.9	29.4	25	140	2.1
1-1/8*6	4.7	28.2	28	152	2.87
1-1/4*5	7.7	46.2	32	127	3.1
1-1/4*6	7.7	46.2	32	152	3.6
1-1/4*10	7.7	46.2	32	254	5.6
1-3/8*6	8.6	51.6	35	152	4.5
1-1/2*8	11.3	67.8	38	203	6.8
1-1/2*8-3/4	11.3	67.8	38	222	7.32
1-1/2*10	11.3	67.8	38	254	8.22
2*12	15.9	95.4	50	305	17.8

Application

1. Common Uses
Industrial Hoisting, Construction, Logistics and Warehousing for load – bearing and connection.
2. Specialized Applications
TOYO FPL：Internal ship equipment installation, small device connection.
WDS G80：Marine engineering, large bridge construction.
FRR：Crane hook connection, cable circular fixation.

FEATURES

Common Features
Appearance：Spray – coated, multi – colored for easy identification and aesthetic needs.
Marking：Clear working load limit markings to prevent overloading.
Safety：Max. guaranteed load 2.5x working load limit for safety margin.
2. Unique Features
TOYO FPL：Good connection stability with 4x min. breaking strength; pear – shape fits special connection scenarios.
WDS G80：High safety with 6x min. breaking strength; welded D – shape for stable hoisting connections.
FRR：Circular design suits rotation or circular connection scenarios.

See our Rigging and Sling Catalog for more info!
