G80 chain adjuster(CHA)

BASIC INTRODUCTION

Surface Treatment: The products feature surface spray coating, offering a variety of colors, which can be used for easy identification and meet different aesthetic requirements.
Load Marking: The working load limit is clearly displayed on the body of each chain adjuster, enabling users to quickly know its bearing capacity and avoid overloading.
Load Parameters: The maximum guaranteed load of these products is 2.5 times the working load limit, and the minimum breaking strength is 4 times the working load limit, ensuring strong load – bearing capacity and reliability.

Product Details

Specs

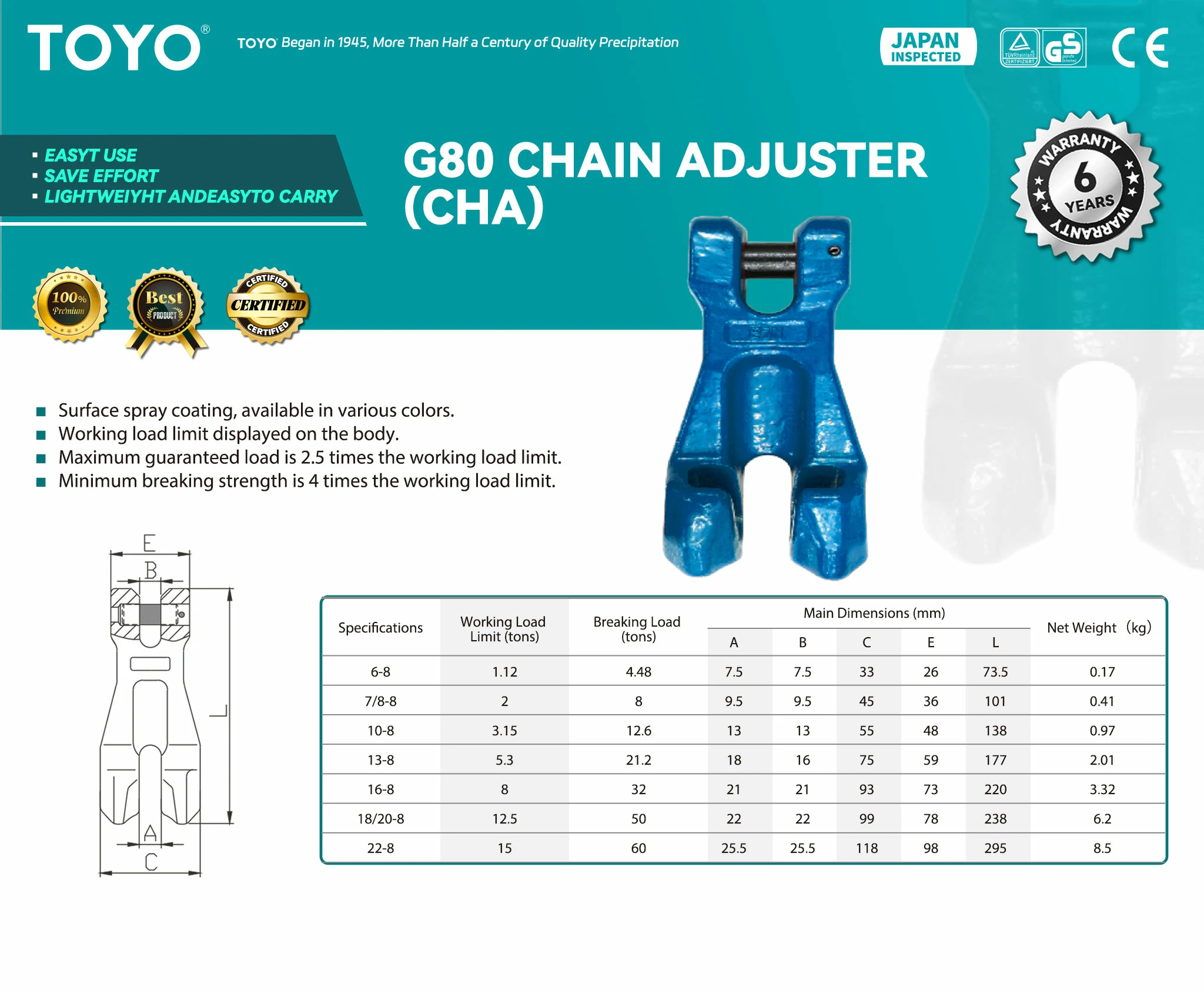

Specifications	Working Load Limit (tons)	Breaking Load (tons)	Main Dimensions (mm)					Net Weight（kg）
Specifications	Working Load Limit (tons)	Breaking Load (tons)	A	B	C	E	L	Net Weight（kg）
6-8	1.12	4.48	7.5	7.5	33	26	73.5	0.17
7/8-8	2	8	9.5	9.5	45	36	101	0.41
10-8	3.15	12.6	13	13	55	48	138	0.97
13-8	5.3	21.2	18	16	75	59	177	2.01
16-8	8	32	21	21	93	73	220	3.32
18/20-8	12.5	50	22	22	99	78	238	6.2
22-8	15	60	25.5	25.5	118	98	295	8.5

Application

Industrial Manufacturing: In industrial production processes, especially in heavy – machinery manufacturing and assembly lines, these chain adjusters can be used to adjust and secure chains when handling heavy components, ensuring smooth production operations.
Construction Projects: During construction, such as in building construction, bridge building, and large – scale infrastructure projects, they are suitable for adjusting chains in hoisting and transporting building materials and equipment, providing reliable support for construction work.
Logistics and Warehousing: In logistics centers and warehouses, when loading, unloading, and transporting heavy goods, these chain adjusters can be used to adjust the tightness of chains, ensuring the safe and stable transportation of goods.
Mining Operations: In the mining industry, when dealing with heavy – duty mining machinery and equipment, these chain adjusters can play a crucial role in adjusting and maintaining chains, helping to ensure the normal operation of mining equipment in harsh environments.

FEATURES

Visual Variety: With multiple colors available due to surface spray coating, it not only satisfies users’ aesthetic preferences but also helps distinguish different product specifications, improving operational efficiency.
Clear and Intuitive Marking: The explicit display of the working load limit on the body provides a clear reference for users, ensuring that the products are used within a safe range and enhancing work safety.
High Safety Factor: The relatively high multiples of the maximum guaranteed load and minimum breaking strength compared to the working load limit endow these chain adjusters with a high safety factor. They can withstand certain unexpected stresses and impacts during use, reducing the risk of failure.
