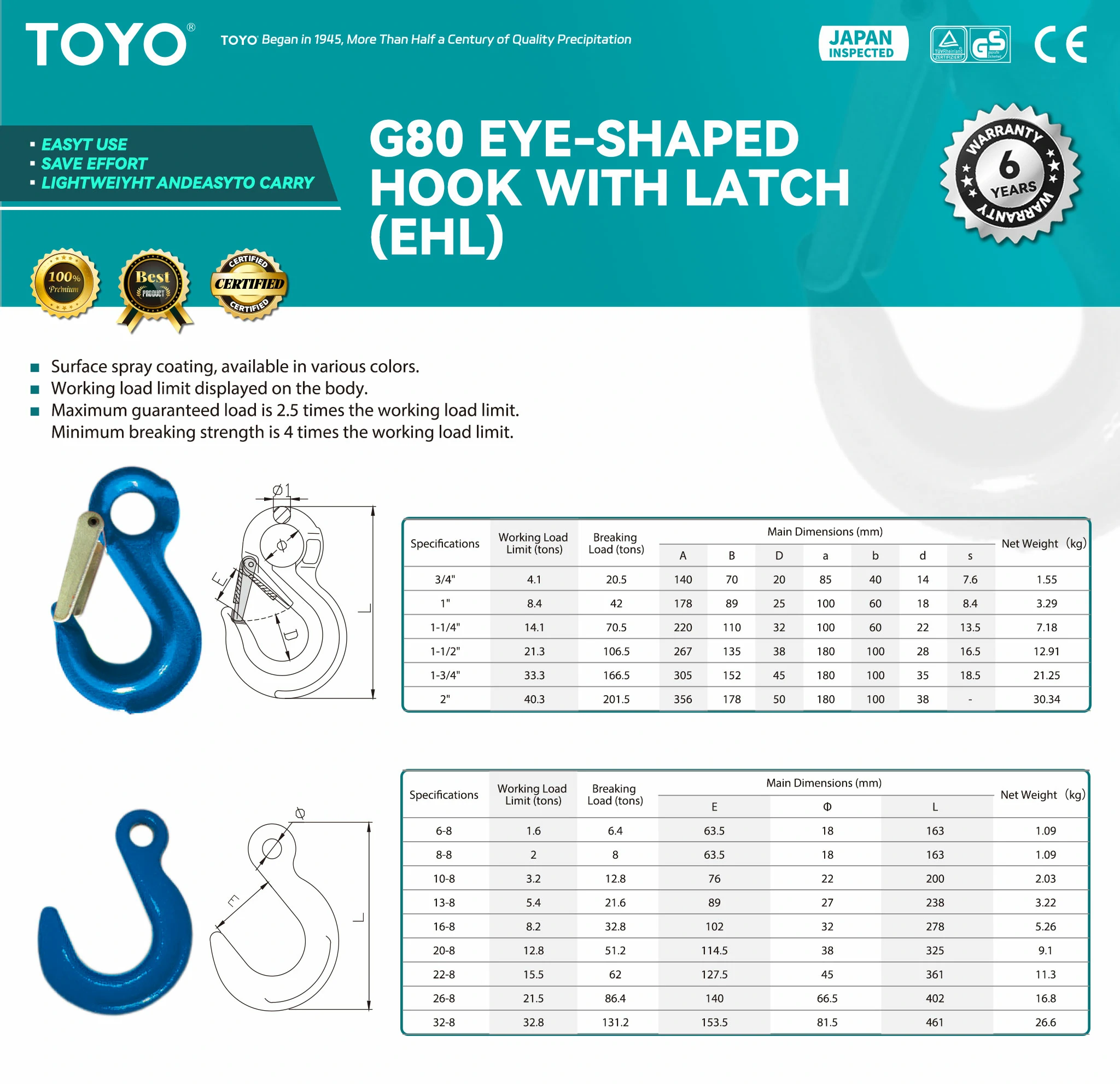

G80 Eye-shaped hook with latch(EHL)

BASIC INTRODUCTION

Surface Treatment: The products adopt a surface spray coating process, offering a variety of colors. This facilitates quick identification and differentiation in different work scenarios and also meets diverse aesthetic requirements.
Load Marking: The working load limit is clearly marked on the body of the hook. Users can intuitively obtain information about its load-bearing capacity, effectively avoiding the risk of overloading.
Load Parameters: The maximum guaranteed load is 2.5 times the working load limit, and the minimum breaking strength reaches 4 times the working load limit, ensuring that the products have strong load-bearing performance and reliability.

Product Details

Specs

Specifications	Working Load Limit (tons)	Breaking Load (tons)	Main Dimensions (mm)							Net Weight（kg）
Specifications	Working Load Limit (tons)	Breaking Load (tons)	A	B	D	a	b	e	s	Net Weight（kg）
3/4″	4.1	20.5	140	70	20	85	40	14	7.6	1.55
1″	8.4	42	178	89	25	100	60	18	8.4	3.29
1-1/4″	14.1	70.5	220	110	32	100	60	22	13.5	7.18
1-1/2″	21.3	106.5	267	135	38	180	100	28	16.5	12.91
1-3/4″	33.3	166.5	305	152	45	180	100	35	18.5	21.25
2″	40.3	201.5	356	178	50	180	100	38	–	30.34

Specifications	Working Load Limit (tons)	Breaking Load (tons)	Main Dimensions (mm)
Specifications	Working Load Limit (tons)	Breaking Load (tons)	E	Φ	L	Net Weight（kg）
6-8	1.6	6.4	63.5	18	163	1.09
8-8	2	8	63.5	18	163	1.09
10-8	3.2	12.8	76	22	200	2.03
13-8	5.4	21.6	89	27	238	3.22
16-8	8.2	32.8	102	32	278	5.26
20-8	12.8	51.2	114.5	38	325	9.1
22-8	15.5	62	127.5	45	361	11.3
26-8	21.5	86.4	140	66.5	402	16.8
32-8	32.8	131.2	153.5	81.5	461	26.6

Application

Industrial Manufacturing Field: In the production and assembly of heavy machinery, it is used for lifting heavy mechanical parts. Its high load-bearing capacity and clear load marking can ensure the safe and efficient progress of the production process.
Construction Scenarios: In construction projects such as high-rise building construction and bridge construction, as a key component for lifting building materials and equipment, it can reliably ensure the safe and stable progress of construction work.
Logistics and Transportation Industry: In the loading and unloading operations of goods in ports, warehouses, and other places, it connects the sling and the goods. With its high safety performance, it prevents the goods from falling, improving the safety and efficiency of logistics transportation.
Shipbuilding and Marine Engineering: It is suitable for shipbuilding, ship repair, and offshore platform operations, and is used for lifting ship equipment and marine engineering components. The surface spray coating treatment can effectively resist the corrosion of the marine environment and extend the service life of the products.

FEATURES

Diverse and Practical Appearance: The rich color options not only meet users’ aesthetic preferences but also enable the differentiation of products of different specifications through color coding, significantly improving work efficiency, especially in complex working environments.
Clear and Explicit Marking: The clear marking of the working load limit provides users with accurate operation guidance, ensuring that the products are used within the safe load range and laying a solid foundation for work safety.
High Safety Factor: The relatively large multiples of the maximum guaranteed load and the minimum breaking strength endow the products with a high safety margin. They can calmly handle sudden stresses and impacts during use, greatly reducing the risk of failure in the process of use.
