G80 ForgedMaster/SlaveLink（ML/SL）

BASIC INTRODUCTION

Surface Treatment: The products adopt a powder coating process on the surface, offering various color options. This not only enhances the aesthetic appeal but also makes it convenient to distinguish and identify them in different working scenarios.
Load Marking: The Working Load Limit (WLL) is clearly indicated on the body of the products, enabling users to quickly understand their load-bearing capacity and effectively avoid the risks caused by overloading.
Load Parameters: The maximum guaranteed load is 2.5 times the Working Load Limit, and the minimum breaking strength reaches 5 times the Working Load Limit, demonstrating excellent load-bearing performance and reliability.

Product Details

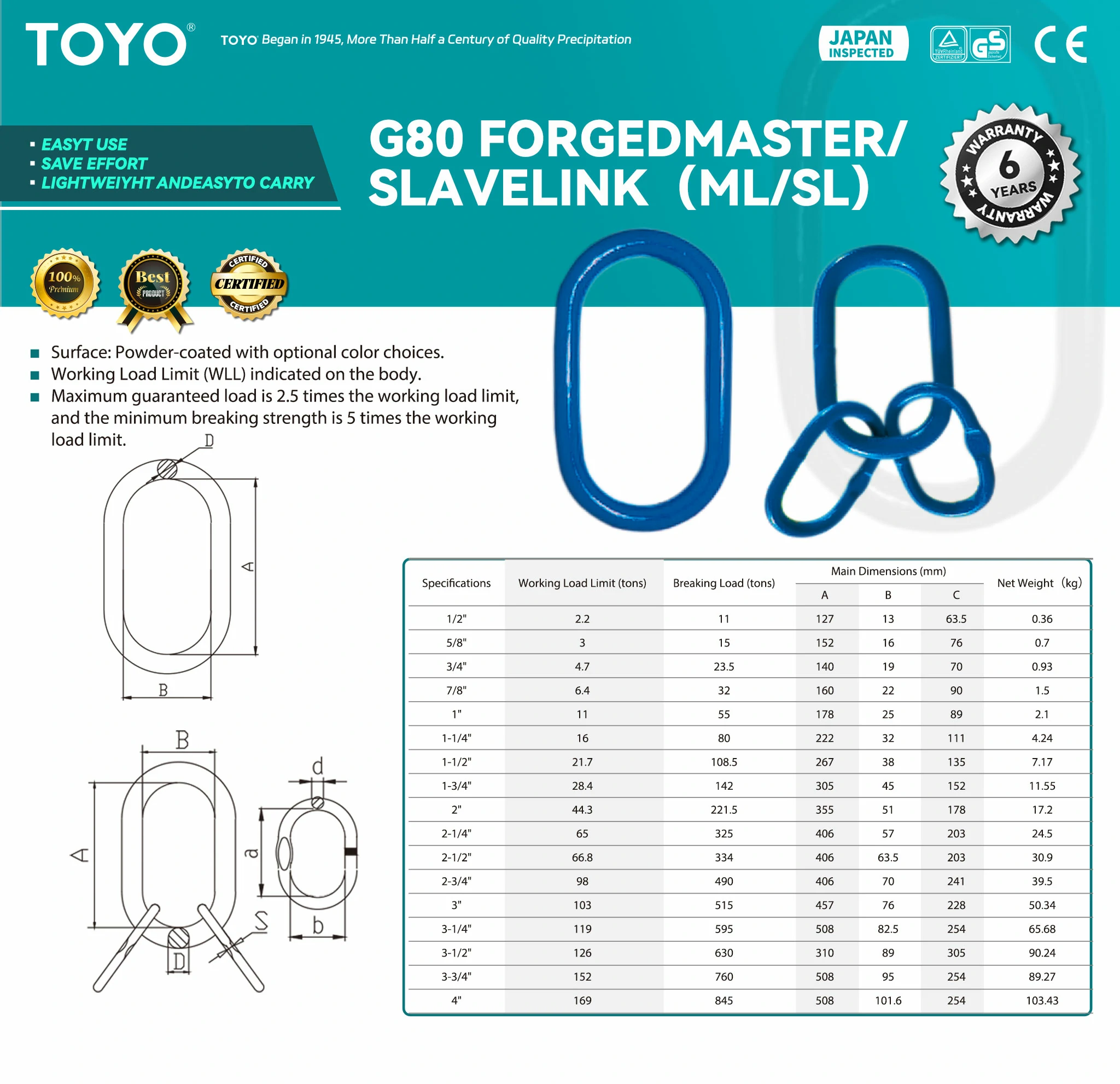

Specs

Specifications	Working Load Limit (tons)	Breaking Load (tons)	Main Dimensions (mm)			Net Weight（kg）
Specifications	Working Load Limit (tons)	Breaking Load (tons)	A	B	C	Net Weight（kg）
1/2″	2.2	11	127	13	63.5	0.36
5/8″	3	15	152	16	76	0.7
3/4″	4.7	23.5	140	19	70	0.93
7/8″	6.4	32	160	22	90	1.5
1″	11	55	178	25	89	2.1
1-1/4″	16	80	222	32	111	4.24
1-1/2″	21.7	108.5	267	38	135	7.17
1-3/4″	28.4	142	305	45	152	11.55
2″	44.3	221.5	355	51	178	17.2
2-1/4″	65	325	406	57	203	24.5
2-1/2″	66.8	334	406	63.5	203	30.9
2-3/4″	98	490	406	70	241	39.5
3″	103	515	457	76	228	50.34
3-1/4″	119	595	508	82.5	254	65.68
3-1/2″	126	630	310	89	305	90.24
3-3/4″	152	760	508	95	254	89.27
4″	169	845	508	101.6	254	103.43

Application

Industrial Manufacturing: In industrial fields such as heavy machinery manufacturing and automobile production, these products are used to connect and lift heavy components and equipment. With their high load-bearing capacity and reliable safety performance, they ensure the smooth progress of the production process.
Construction Projects: They are suitable for scenarios in construction engineering, such as bridge construction and high-rise building construction. They can serve as key components for hoisting building materials and installing large-scale components, ensuring construction safety and project quality.
Logistics and Transportation: In the loading and unloading operations of goods in ports, warehouses and other places, they connect the slings with the goods, preventing the goods from falling and improving the safety and efficiency of logistics transportation.
Energy Industry: In energy projects such as oil and gas extraction and power facility construction, they are used for hoisting and transporting large-scale mechanical equipment and pipelines, etc. They can adapt to complex and harsh working environments and ensure the normal progress of energy projects.

FEATURES

Both Personalization and Practicality in Appearance: The multiple color options of the powder coating meet users’ personalized aesthetic needs. Meanwhile, different products in terms of specifications or purposes can be distinguished by color, improving work efficiency.
Clear and Understandable Marking: The clear marking of the Working Load Limit (WLL) provides users with a definite reference for operation, ensuring that the products are used within the safe load range and guaranteeing work safety.
High Safety Performance: The relatively large multiples of the maximum guaranteed load and the minimum breaking strength endow the products with a high safety factor. They can withstand unexpected stresses and impacts during use, reducing the probability of failures.
