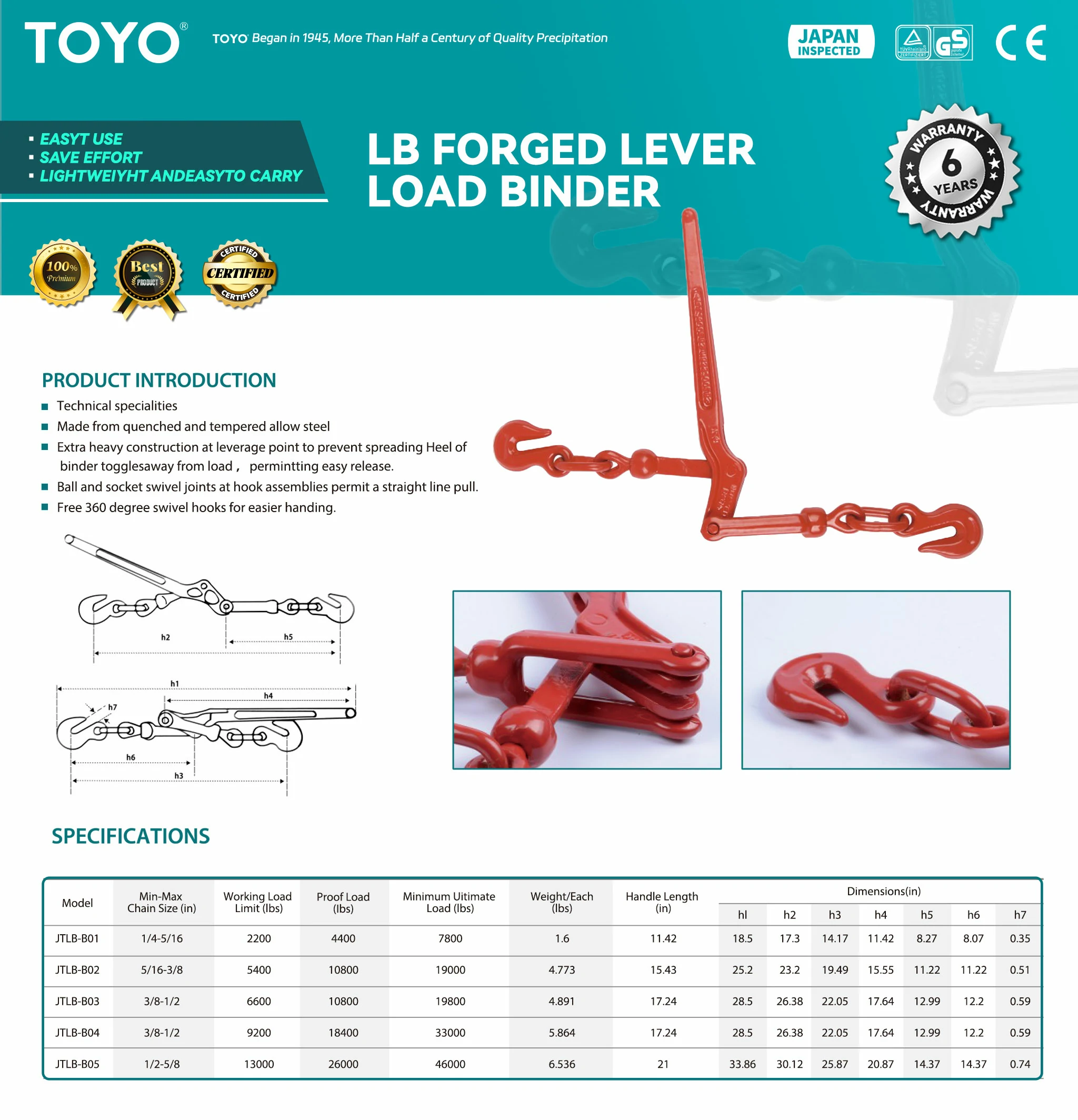

LB Forged Lever Load Binder

Product Details

Specs

Model	Min-Max Chain Size (in)	Working Load Limit (lbs)	Proof Load (Ibs)	Minimum Uitimate Load (lbs)	Weight/Each (lbs)	Handle Length (in)	Dimensions(in)
Model	Min-Max Chain Size (in)	Working Load Limit (lbs)	Proof Load (Ibs)	Minimum Uitimate Load (lbs)	Weight/Each (lbs)	Handle Length (in)	hl	h2	h3	h4	h5	h6	h7
JTLB-B01	1/4-5/16	2200	4400	7800	1.6	11.42	18.5	17.3	14.17	11.42	8.27	8.07	0.35
JTLB-B02	5/16-3/8	5400	10800	19000	4.773	15.43	25.2	23.2	19.49	15.55	11.22	11.22	0.51
JTLB-B03	3/8-1/2	6600	10800	19800	4.891	17.24	28.5	26.38	22.05	17.64	12.99	12.2	0.59
JTLB-B04	3/8-1/2	9200	18400	33000	5.864	17.24	28.5	26.38	22.05	17.64	12.99	12.2	0.59
JTLB-B05	1/2-5/8	13000	26000	46000	6.536	21	33.86	30.12	25.87	20.87	14.37	14.37	0.74

Application

Construction: During the construction process, it is used in scenarios such as hoisting building materials and fixing scaffolding. Its powerful fastening ability can ensure the safety and stability of the construction.
Logistics and Transportation: Suitable for the bundling and fixing of goods during transportation, such as truck transportation, ship transportation, etc. It can prevent goods from moving or falling during transportation, ensuring the safety of goods transportation.
Power Engineering: In the process of power line erection and maintenance, it is used to tighten wires, cables, or fix related equipment, facilitating the operation of construction workers.
Industrial Equipment Installation and Maintenance: During the installation, debugging, and maintenance of factory equipment, this load binder can help fix and adjust equipment components, ensuring the accuracy and stability of equipment installation.

FEATURES

High-quality Material: Made from quenched and tempered alloy steel. This material undergoes a special heat treatment process, featuring high strength and good toughness, ensuring that the load binder is sturdy and durable, and capable of withstanding heavy loads.
Reinforced Structural Design: An extra-heavy construction is adopted at the leverage point to prevent component spreading. The heel of the binder can toggle away from the load, enabling easy release, which enhances operational convenience and safety.
Flexible Connection Design: The ball and socket swivel joints at the hook assemblies allow for a straight line pull, ensuring the effective transmission of pulling force. At the same time, it reduces wear and stress concentration caused by angular issues.
Convenient Rotating Hooks: Equipped with free 360-degree swivel hooks, making the operation more flexible and convenient. Whether it is installation, adjustment, or disassembly, it can be carried out more easily, improving work efficiency.
