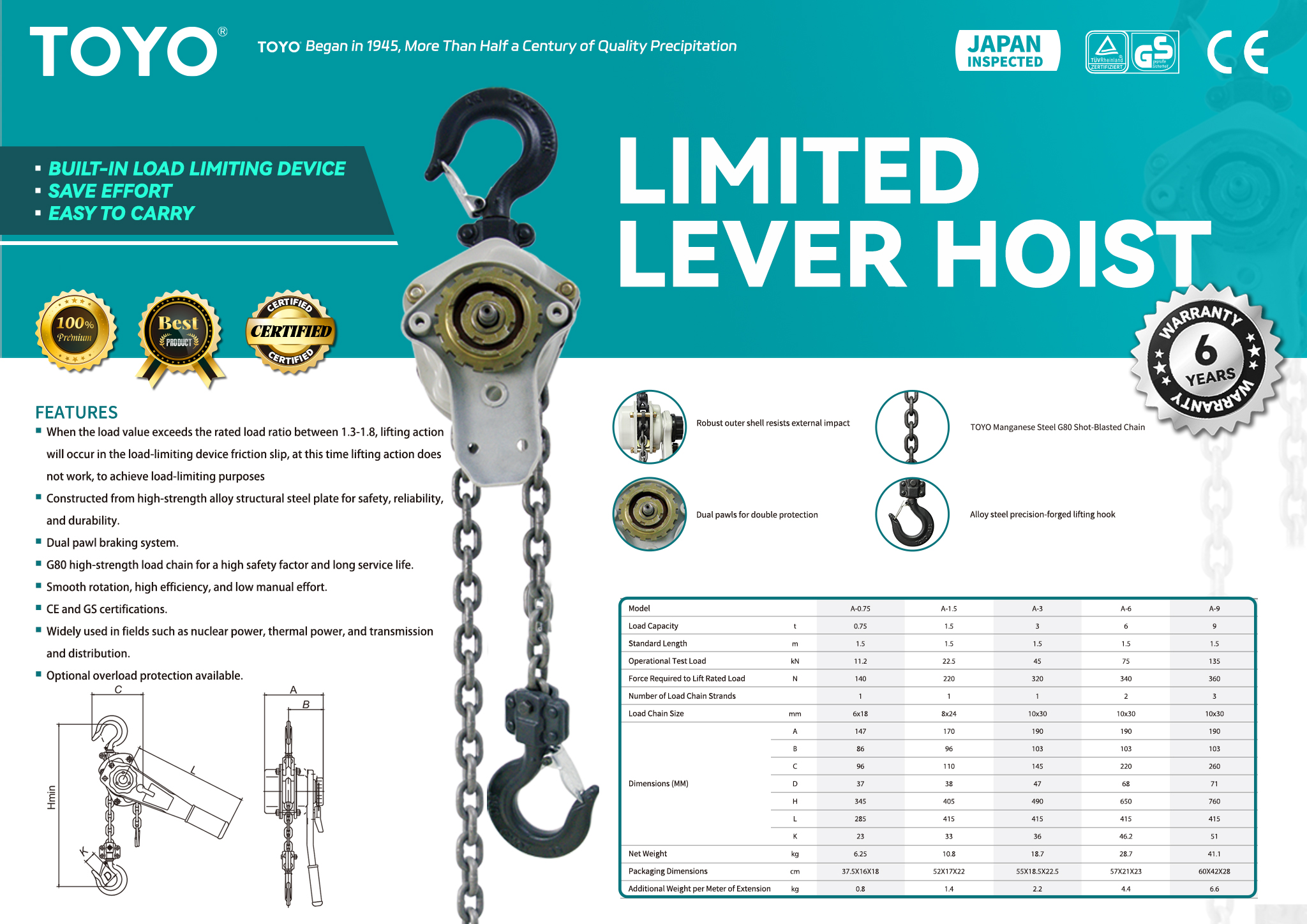

Limited Manual Lever Hoist

Specs of Limited Manual Lever Hoist

BASIC INTRODUCTION

The TOYO Limited lever hoist is mainly constructed from high-strength alloy structural steel plates. It is equipped with:

A dual-pawl braking system.
A G80 high-strength load chain (TOYO manganese steel G80 shot-blasted chain).
An alloy steel precision-forged lifting hook.

It has obtained CE and GS certifications, and some models can be optionally equipped with overload protection functions. When the load value exceeds 1.3-1.8 times the rated load, the friction plate of the load-limiting device will slip, and the lifting action will fail at this time, thus achieving the purpose of load-limiting.

FEATURES

Overload Protection: When the load exceeds 1.3-1.8 times the rated load, the friction slip mechanism activates, preventing lifting and ensuring safety.
High-Strength Construction: Made from alloy structural steel plates for safety, reliability, and durability.
Dual Pawl Braking System: Ensures secure load control.
G80 High-Strength Load Chain: Offers a high safety factor and long service life.
Smooth Operation: Provides high efficiency and low manual effort.
Certifications: Complies with CE and GS standards.
Wide Applications: Used in nuclear power, thermal power, and transmission/distribution industries.
Optional Overload Protection: Available for select models.

APPLICATION INDUSTRIES

Industrial Manufacturing
- Assembly, debugging, and maintenance of large equipment.
- Handling heavy components to improve production efficiency.
Construction
- Lifting precast concrete components and steel beams.
- Facilitating building projects with efficient material handling.
Warehousing and Logistics
- Loading, unloading, and stacking goods.
- Enhancing logistics efficiency in warehouses and distribution centers.
Energy and Power
- Equipment installation and maintenance in nuclear/thermal power plants.
- Lifting reactor components, boiler installations, and utility poles.

Product parameters

Model		A-0.75	A-1.5	A-3	A-6	A-9
Load Capacity	t	0.75	1.5	3	6	9
Standard Length	m	1.5	1.5	1.5	1.5	1.5
Operational Test Load	kN	11.2	22.5	45	75	135
Force Required to Lift Rated Load	N	140	220	320	340	360
Number of Load Chain Strands		1	1	1	2	3
Load Chain Size	mm	6×18	8×24	10×30	10×30	10×30
Dimensions (MM)	A	147	170	190	190	190
	B	86	96	103	103	103
	C	96	110	145	220	260
	D	37	38	47	68	71
	H	345	405	490	650	760
	L	285	415	415	415	415
	K	23	33	36	46.2	51
Net Weight	kg	6.25	10.8	18.7	28.7	41.1
Packaging Dimensions	cm	37.5X16X18	52X17X22	55X18.5X22.5	57X21X23	60X42X28
Additional Weight per Meter of Extension	kg	0.8	1.4	2.2	4.4	6.6

The Special Equipment Manufacturing License and Type Test Certificate issued to TOYO by the National Quality Supervision and Inspection Center for Lifting and Transport Machinery demonstrate that our products fully comply with national safety regulations and technical standards. As a reputable chain block manufacturer, TOYO ensures superior design, manufacturing, and performance. These certifications provide customers with robust legal protection and technical support, ensuring safe and reliable operations. Trust TOYO, a leading chain block manufacturer, to deliver equipment that meets the highest industry benchmarks, safeguarding your production processes while adhering to stringent quality and safety requirements.
