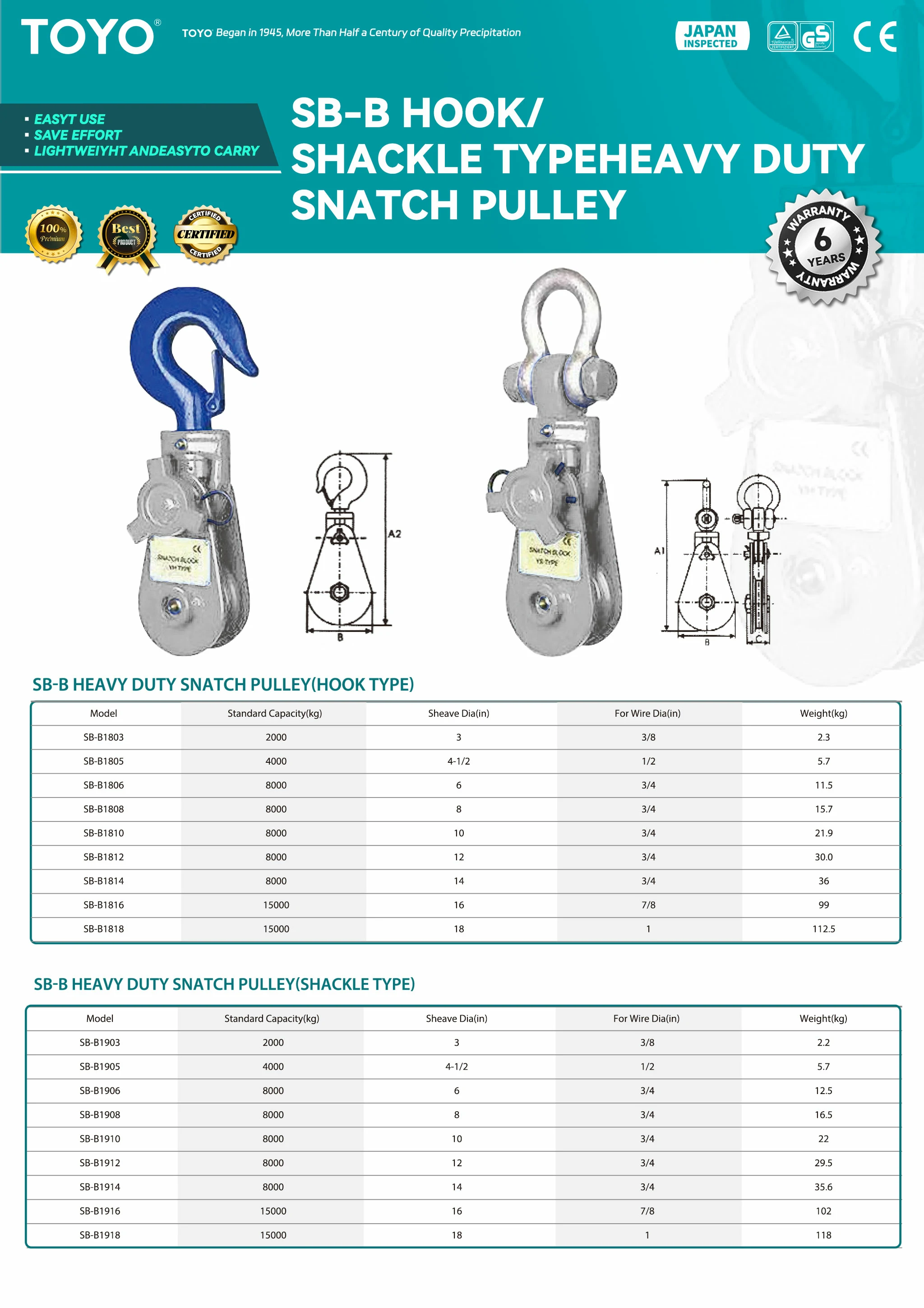

SB-B Hook/Shackle TypeHeavy Duty Snatch Pulley BASIC INTRODUCTION Type: It belongs to a heavy-duty snatch pulley (also known as snatch block). It comes with an SB – B Hook (presumably a specific type of hook) and is of the Shackle Type (a shackle indicates its connection method is related to the shackle). Material: Usually made of heavy-duty steel, which ensures its strength and durability, and it can withstand large pulling forces and loads. Size Specification: Varies according to the specific product model, but it is generally designed to be compact for easy installation and use. Some products can be adapted to ropes within a specific size range, such as winch ropes from 5/16″ to 1/2″. Load Capacity: Common specifications include 22,000lbs (10 tons), 24,000lbs (12 tons), etc., which can meet the requirements of various heavy-duty operations. Product Details Specs SB-B Heavy Duty Snatch Pulley(Hook Type) Model Standard Capacity(kg) Sheave Dia(in) For Wire Dia(in) Weight(kg) SB-B1803 2000 3 3/8 2.3 SB-B1805 4000 4-1/2 1/2 5.7 SB-B1806 8000 6 3/4 11.5 SB-B1808 8000 8 3/4 15.7 SB-B1810 8000 10 3/4 21.9 SB-B1812 8000 12 3/4 30.0 SB-B1814 8000 14 3/4 36 SB-B1816 15000 16 7/8 99 SB-B1818 15000 18 1 112.5 SB-B Heavy Duty Snatch Pulley(Shackle Type) Model Standard Capacity(kg) Sheave Dia(in) For Wire Dia(in) Weight(kg) SB-B1903 2000 3 3/8 2.2 SB-B1905 4000 2004/1/2 1/2 5.7 SB-B1906 8000 6 3/4 12.5 SB-B1908 8000 8 3/4 16.5 SB-B1910 8000 10 3/4 22 SB-B1912 8000 12 3/4 29.5 SB-B1914 8000 14 3/4 35.6 SB-B1916 15000 16 7/8 102 SB-B1918 15000 18 1 118 Application Off-road Rescue: When an ATV, UTV, or other off-road vehicles get stuck, it can be used in conjunction with a winch. By changing the direction of the pulling force, it helps the vehicle get out of trouble. For example, it can be used to bypass obstacles such as trees and boulders for towing. Construction Site: Used for lifting construction materials in construction sites, such as steel, wood, prefabricated components, etc. It can lift heavy objects from the ground to a high place or transfer them between different positions. With its mechanical advantage, it reduces labor costs and improves efficiency. Maritime Operations: It plays a role in ship mooring, cargo loading and unloading, and maritime rescue. For example, it is used to adjust the direction and tension of mooring ropes to help ships dock at the pier; in rescue operations, it can cooperate with a winch to salvage people or objects that have fallen into the water. Industrial Hoisting: In industrial places such as factories and warehouses, it is used for equipment installation, cargo handling, etc. It can conveniently change the direction of the lifting rope, making the movement of heavy objects more flexible and accurate. Mining Operations: In mines, it can be used for towing mine cars, lifting ores or equipment, etc., and it can adapt to the harsh working environment in mines and bear large loads. FEATURES High-strength Structure: Manufactured from heavy-duty steel and carefully designed and processed, it has a strong load-bearing capacity and can handle harsh working conditions and high-load pulling forces. Side-opening Design: As a typical feature of a snatch pulley, it has a side-opening mechanism, which makes it convenient for the quick installation and removal of ropes or steel cables. There is no need to thread the rope from the end, saving operation time and improving work efficiency. Good Wear Resistance: The surface of the pulley is usually specially treated, such as quenching, chrome plating, etc., to enhance wear resistance, reduce the friction between the rope or steel cable and the pulley, and extend the service life of both. Corrosion Resistance: Some products will be treated with a black powder coating or made of corrosion-resistant materials such as stainless steel, which can effectively resist the erosion of the external environment, such as moisture, saltwater, etc., and is suitable for various harsh working environments. Strong Compatibility: It can be used in combination with various types of winches, ropes, steel cables, as well as D-ring (Metal) shackles and soft (synthetic) shackles. It has high versatility and can meet the equipment configuration needs of different users. See our Rigging and Sling Catalog for more info! Leave Your Message Send Like this product? Share to your platform ➔ Related products Steel Wire Rope For Lifts Steel Wire Rope for Aerospace Control Stainless Steel Wire Rope Steel Wire Rope (Ungalvanized and Galvanized) SL Drum clamp Round sling Nylon Rope G80 CHAIN SLING
