SB-E Champion Snatch Pulley

BASIC INTRODUCTION

The SB – E Champion Snatch Pulley is a heavy – duty snatch pulley, used in conjunction with hooks or shackles. Made of high – strength steel, it comes in various sizes. The pulley diameter ranges from 8 to 24 inches, suitable for ropes of different thicknesses, such as 5/16″ – 1/2″. Its load – bearing capacity ranges from 2 to 40 tons.

Product Details

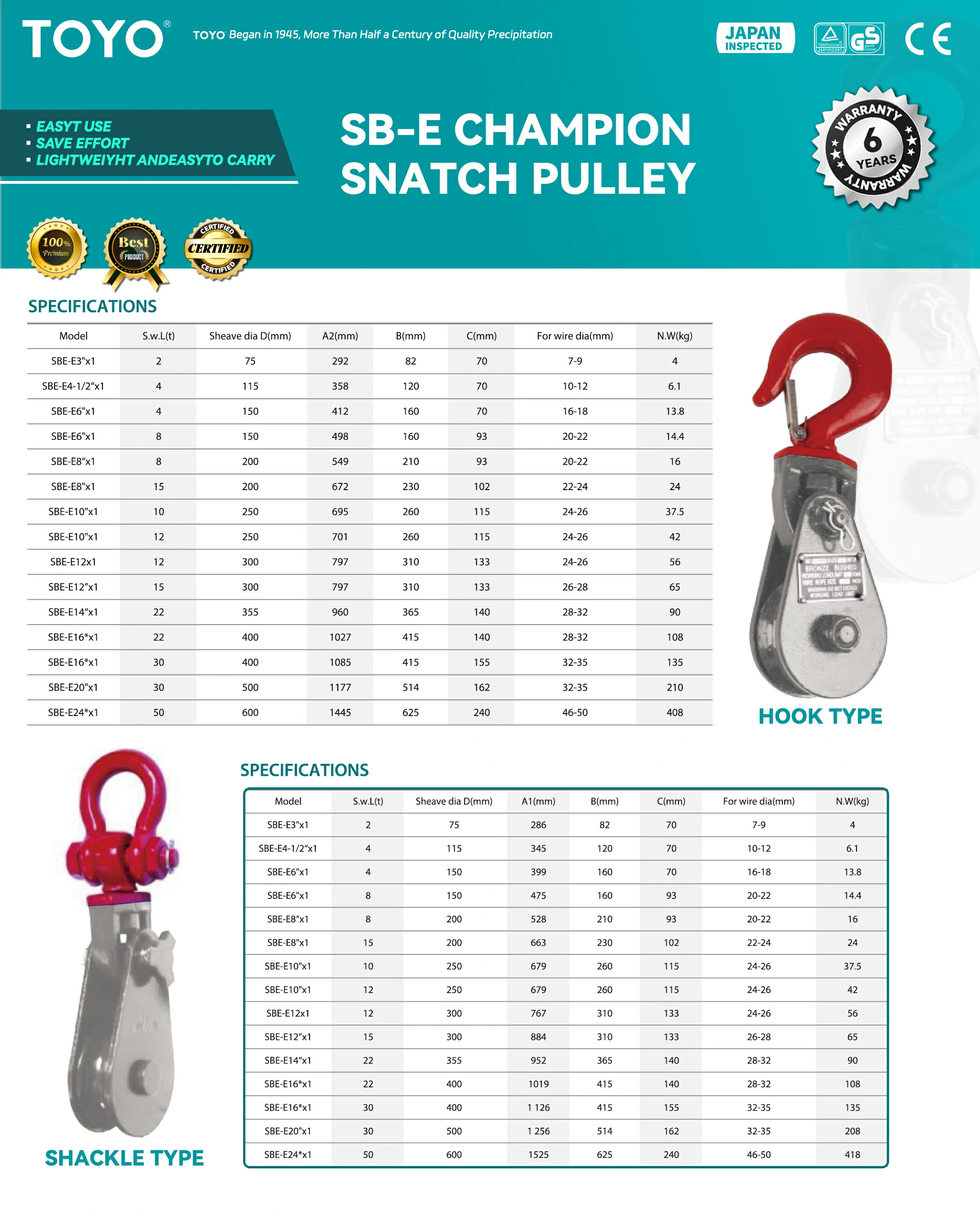

Specs

Model	S.w.L(t)	Sheave dia D(mm)	A2(mm)	B(mm)	C(mm)	For wire dia(mm)	N.W(kg)
SBE-E3″x1	2	75	292	82	70	7-9	4
SBE-E4-1/2“x1	4	115	358	120	70	10-12	6.1
SBE-E6″x1	4	150	412	160	70	16-18	13.8
SBE-E6″x1	8	150	498	160	93	20-22	14.4
SBE-E8“x1	8	200	549	210	93	20-22	16
SBE-E8″x1	15	200	672	230	102	22-24	24
SBE-E10″x1	10	250	695	260	115	24-26	37.5
SBE-E10″x1	12	250	701	260	115	24-26	42
SBE-E12x1	12	300	797	310	133	24-26	56
SBE-E12”x1	15	300	797	310	133	26-28	65
SBE-E14“x1	22	355	960	365	140	28-32	90
SBE-E16*x1	22	400	1027	415	140	28-32	108
SBE-E16*x1	30	400	1085	415	155	32-35	135
SBE-E20″x1	30	500	1177	514	162	32-35	210
SBE-E24*x1	50	600	1445	625	240	46-50	408

Application

It is applicable to scenarios such as off – road rescue (vehicle recovery and towing), construction (material hoisting and equipment installation), maritime operations (ship mooring and maritime rescue), industrial hoisting (equipment handling and cargo transfer), and mining operations (ore transportation and equipment maintenance).

FEATURES

Sturdy and Safe: It is integrally formed from steel or welded with high – precision, with a safety factor of over 4:1.
Easy to Operate: The side – opening design enables easy installation and removal of ropes, and allows for flexible positioning.
Wear – resistant and Corrosion – resistant: The pulley surface is hardened, and some models use wear – resistant materials in the groove. It is protected by surface coatings, and key components can be made of stainless steel.
High Compatibility: It is compatible with various ropes, such as steel wire ropes, and can work with different types of shackles and hooks. It can also collaborate with equipment like winches.
