TML Mini Manual lever Hoist

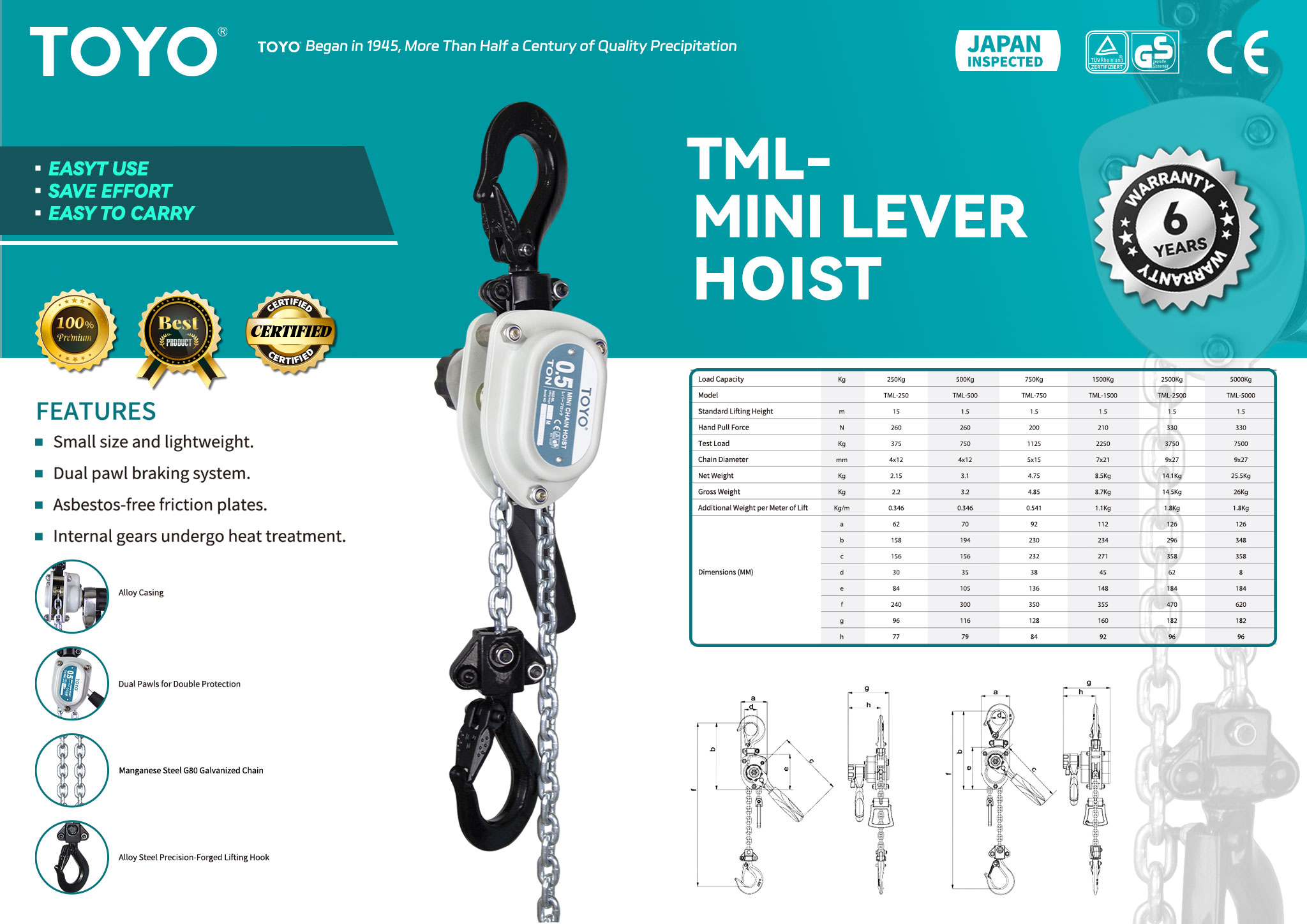

Specs of TML Mini Manual lever Hoist

BASIC INTRODUCTION

The TOYO tml – mini lever Hoist features a compact and lightweight design. Its structure includes a dual – pawl braking system, asbestos – free friction plates, and internal gears that have undergone heat treatment. It has an alloy casing, is equipped with a manganese steel G80 galvanized chain, and an alloy steel precision – forged lifting hook.

FEATURES

Small size and lightweight.
Dual pawl braking system.
Asbestos-free friction plates.
Internal gears undergo heat treatment.

APPLICATION INDUSTRIES

1. Precision Manufacturing
In electronics and instrumentation, it helps install, debug, and maintain small components. Its compact and lightweight design allows for flexible operation in tight spaces, ensuring accurate lifting.
2. Home Repair and DIY
Home users can use it for simple tasks like hanging lamps or installing AC outdoor brackets. It’s easy to operate, safe, and meets daily heavy – object lifting needs.
3. Small Commercial Premises
In small shops and workshops, it’s useful for moving goods and adjusting shelf positions. Its lightweight nature makes it suitable for limited – space areas, boosting work efficiency.
4. Laboratories and Research Institutions
In labs, it can move small experimental equipment. Its safety features ensure reliable use in this environment.

Product parameters

Load Capacity	Kg	250Kg	500Kg	750Kg	1500Kg	2500Kg	5000Kg
Model		TML-250	TML-500	TML-750	TML-1500	TML-2500	TML-5000
Standard Lifting Height	m	15	1.5	1.5	1.5	1.5	1.5
Hand Pull Force	N	260	260	200	210	330	330
Test Load	Kg	375	750	1125	2250	3750	7500
Chain Diameter	mm	4×12	4×12	5×15	7×21	9×27	9×27
Net Weight	Kg	2.15	3.1	4.75	8.5Kg	14.1Kg	25.5Kg
Gross Weight	Kg	2.2	#3.2	4.85	8.7Kg	14.5Kg	26Kg
Additional Weight per Meter of Lift	Kg/m	0.346	0.346	0.541	1.1Kg	1.8Kg	1.8Kg
Dimensions (MM)	a	62	70	92	112	126	126
	b	158	194	230	234	296	348
	c	156	156	232	271	358	358
	d	30	35	38	45	62	8
	e	84	105	136	148	184	184
	f	240	300	350	355	470	620
	g	96	116	128	160	182	182
	h	77	79	84	92	96	96
