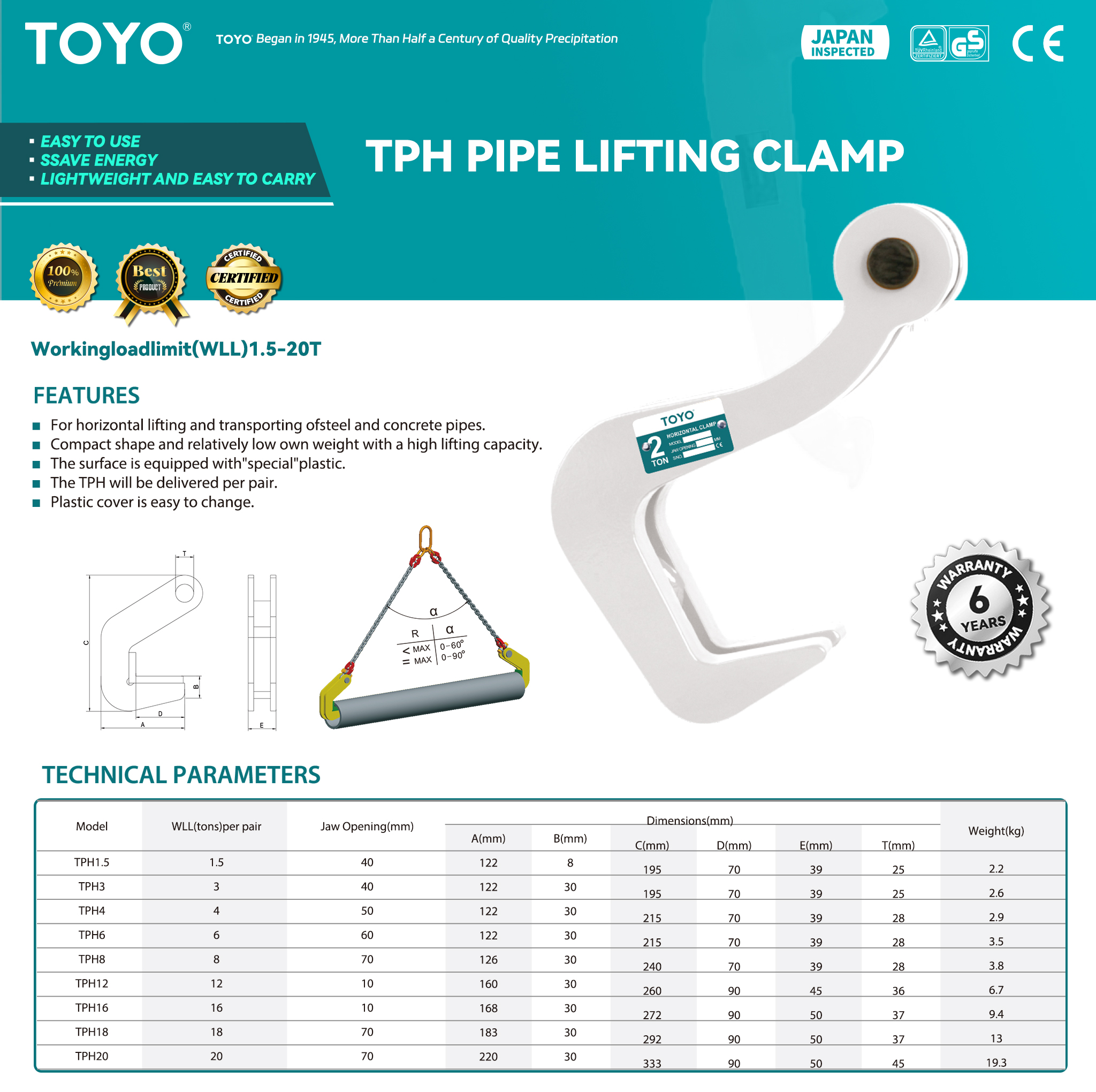

TPH PIPE LIFTING CLAMP

BASIC INTRODUCTION

Product Name: TOYO TPH PIPE LIFTING CLAMP
Working Load Limit (WLL): 1.5 – 20T
Product Delivery Form: The TPH pipe lifting clamps are delivered in pairs.

FEATURES

It has a compact shape, a relatively low self-weight, and a high lifting capacity.
The surface is equipped with “special” plastic material.
The plastic cover is easy to replace, which facilitates maintenance and use.

See our Rigging and Sling Catalog for more info!

Product Details

Specs

Model	WLL(tons)per pair	Jaw Opening(mm)	Dimensions(mm)						Weight(kg)
Model	WLL(tons)per pair	Jaw Opening(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	T(mm)	Weight(kg)
TPH1.5	1.5	40	122	8	195	70	39	25	2.2
TPH3	3	40	122	30	195	70	39	25	2.6
TPH6	6	60	122	30	215	70	39	28	3.5
TPH8	8	70	126	30	240	70	39	28	3.8
TPH12	12	10	160	30	260	90	45	36	6.7
TPH16	16	10	168	30	272	90	50	37	9.4
TPH18	18	70	183	30	292	90	50	37	13
TPH20	20	70	220	30	333	90	50	45	19.3
