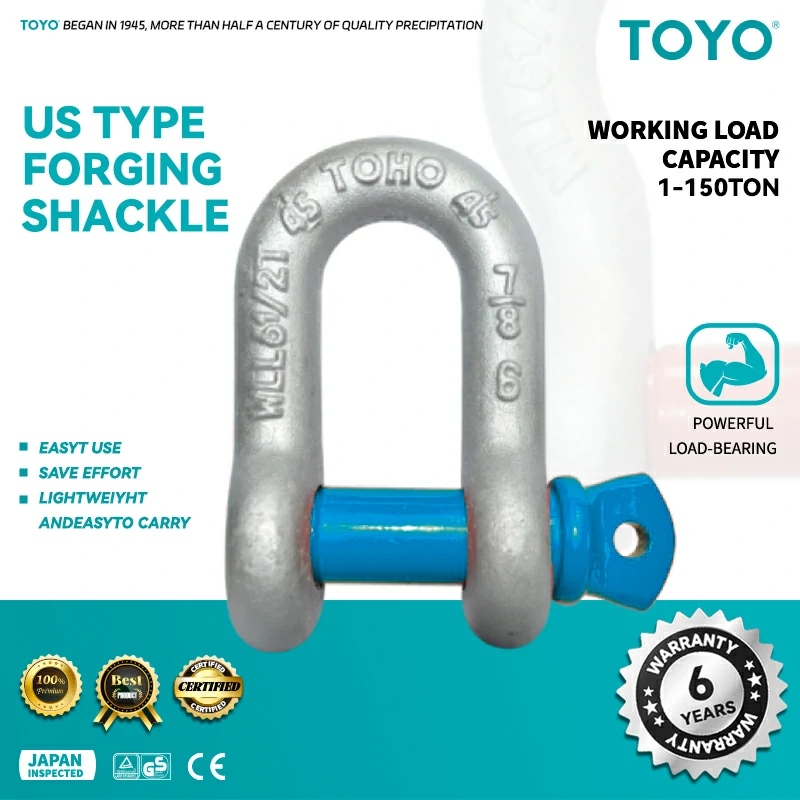

US Type forging shackle

BASIC INTRODUCTION

TOYO US Type forging shackle has G209 (rated load 1/3 – 85 tons) and G2130 (1/2 – 150 tons) models, it is a typical D shackle. It offers electro – galvanized or hot – dip galvanized surfaces, made by die – forging, hardened, annealed, with alloy steel pins, and working loads marked on each body.

FEATURES

Strong Structure: Die – forged and heat – treated, with alloy steel pins for high strength.
Clear Marking: Working load markings help with model selection.
Corrosion – Resistant: Galvanized surfaces suit harsh environments.
Safe: Maximum guaranteed load is 2.2x working load, minimum breaking strength 4 – 6x.

See our Rigging and Sling Catalog for more info!

Product Details of D shackle

Specs of D shackle

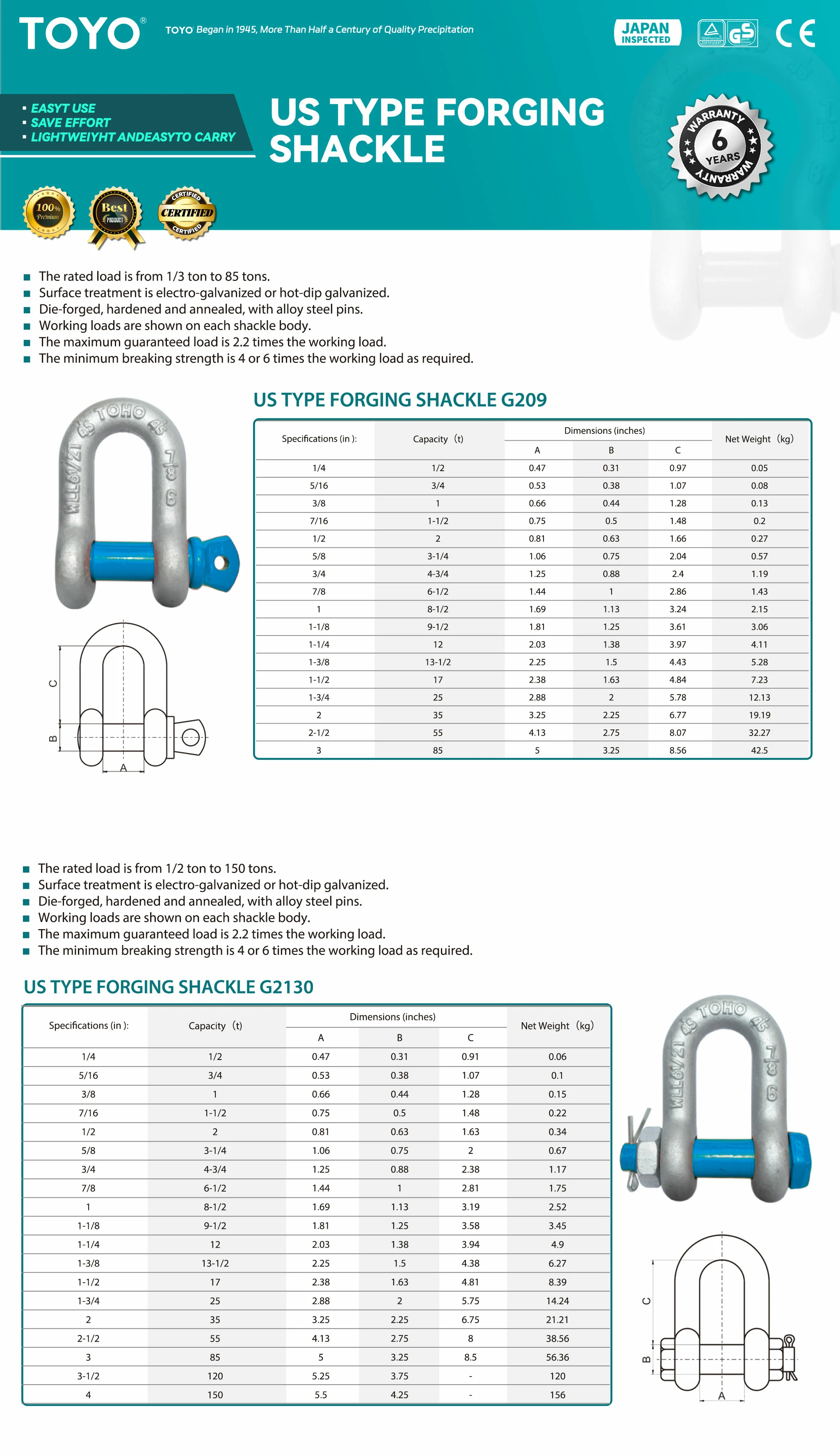

US Type forging shackle G209

Specifications (in ):	Capacity（t)	Dimensions (inches)			Net Weight（kg）
Specifications (in ):	Capacity（t)	A	B	C	Net Weight（kg）
1/4	1/2	0.47	0.31	0.97	0.05
5/16	3/4	0.53	0.38	1.07	0.08
3/8	1	0.66	0.44	1.28	0.13
7/16	1-1/2	0.75	0.5	1.48	0.2
1/2	2	0.81	0.63	1.66	0.27
5/8	3-1/4	1.06	0.75	2.04	0.57
3/4	4-3/4	1.25	0.88	2.4	1.19
7/8	6-1/2	1.44	1	2.86	1.43
1	8-1/2	1.69	1.13	3.24	2.15
1-1/8	9-1/2	1.81	1.25	3.61	3.06
1-1/4	12	2.03	1.38	3.97	4.11
1-3/8	13-1/2	2.25	1.5	4.43	5.28
1-1/2	17	2.38	1.63	4.84	7.23
1-3/4	25	2.88	2	5.78	12.13
2	35	3.25	2.25	6.77	19.19
2-1/2	55	4.13	2.75	8.07	32.27
3	85	5	3.25	8.56	42.5

US Type forging shackle G2130

Specifications (in ):	Capacity（t)	Dimensions (inches)			Net Weight（kg）
Specifications (in ):	Capacity（t)	A	B	C	Net Weight（kg）
1/4	1/2	0.47	0.31	0.91	0.06
5/16	3/4	0.53	0.38	1.07	0.1
3/8	1	0.66	0.44	1.28	0.15
7/16	1-1/2	0.75	0.5	1.48	0.22
1/2	2	0.81	0.63	1.63	0.34
5/8	3-1/4	1.06	0.75	2	0.67
3/4	4-3/4	1.25	0.88	2.38	1.17
7/8	6-1/2	1.44	1	2.81	1.75
1	8-1/2	1.69	1.13	3.19	2.52
1-1/8	9-1/2	1.81	1.25	3.58	3.45
1-1/4	12	2.03	1.38	3.94	4.9
1-3/8	13-1/2	2.25	1.5	4.38	6.27
1-1/2	17	2.38	1.63	4.81	8.39
1-3/4	25	2.88	2	5.75	14.24
2	35	3.25	2.25	6.75	21.21
2-1/2	55	4.13	2.75	8	38.56
3	85	5	3.25	8.5	56.36
3-1/2	120	5.25	3.75	–	120
4	150	5.5	4.25	–	156

Application

Used in construction (hoisting, scaffolding), marine (mooring, cargo handling), industrial manufacturing (equipment installation), and transportation (goods fixing) to connect and bear loads.
