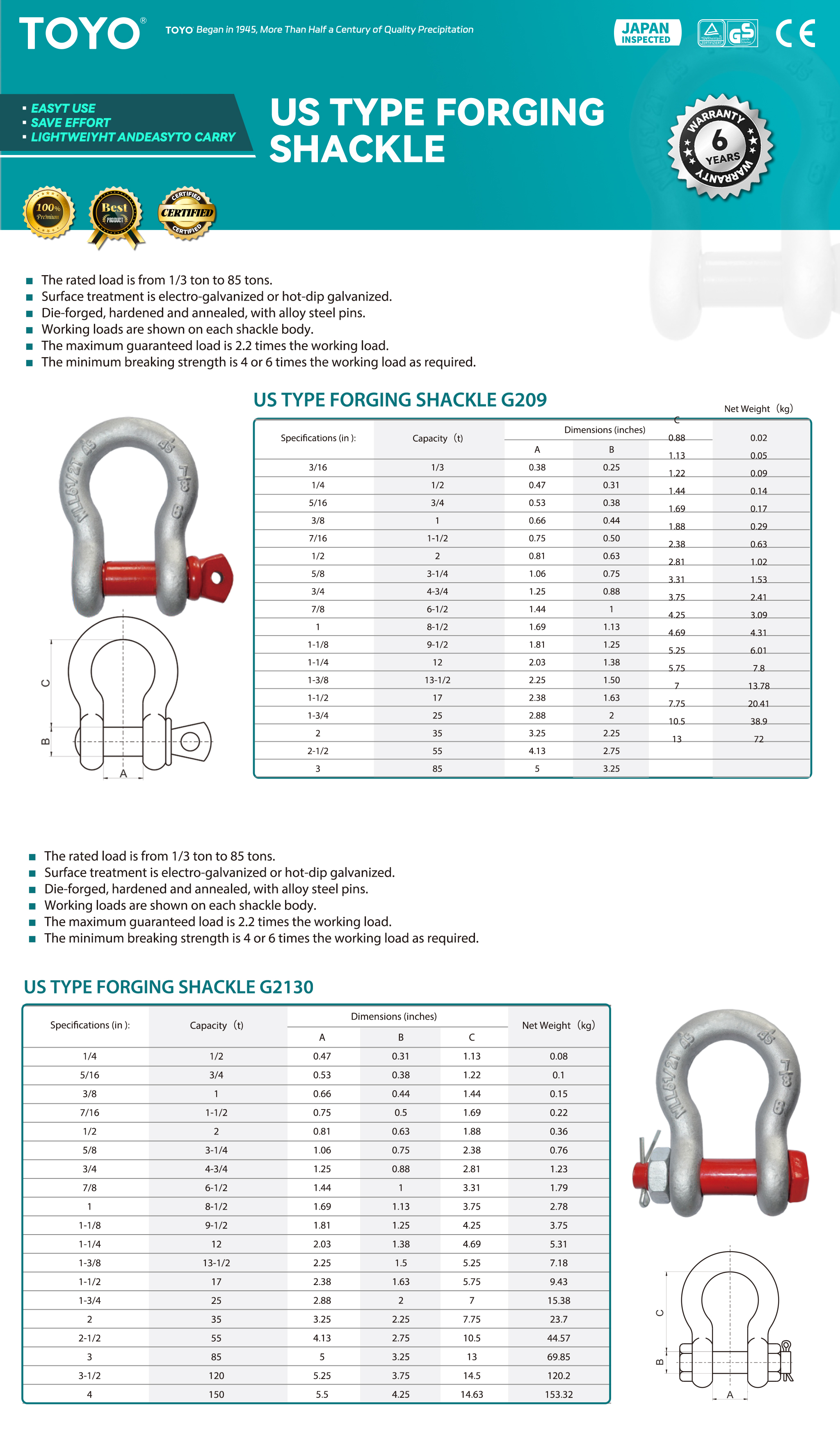

US Type forging shackle BASIC INTRODUCTION TOYO US Type forging shackle is an American – style forged shackle, including models such as G209 and G2130. It has a wide range of rated loads, from 1/3 ton to 85 tons, which can meet different load requirements. With diverse surface treatment methods, it offers two options: electro – galvanization and hot – dip galvanization, adapting to various environmental demands. The shackles are manufactured by die – forging process and equipped with alloy steel pins to ensure structural integrity. Product Details Specs US Type forging shackle G209 Specifications (in ): Capacity（t) Dimensions (inches) Net Weight（kg） A B C 3/16 1/3 0.38 0.25 0.88 0.02 1/4 1/2 0.47 0.31 1.13 0.05 5/16 3/4 0.53 0.38 1.22 0.09 3/8 1 0.66 0.44 1.44 0.14 7/16 1-1/2 0.75 0.50 1.69 0.17 1/2 2 0.81 0.63 1.88 0.29 5/8 3-1/4 1.06 0.75 2.38 0.63 3/4 4-3/4 1.25 0.88 2.81 1.02 7/8 6-1/2 1.44 1 3.31 1.53 1 8-1/2 1.69 1.13 3.75 2.41 1-1/8 9-1/2 1.81 1.25 4.25 3.09 1-1/4 12 2.03 1.38 4.69 4.31 1-3/8 13-1/2 2.25 1.50 5.25 6.01 1-1/2 17 2.38 1.63 5.75 7.8 1-3/4 25 2.88 2 7 13.78 2 35 3.25 2.25 7.75 20.41 2-1/2 55 4.13 2.75 10.5 38.9 3 85 5 3.25 13 72 US Type forging shackle G2130 Specifications (in ): Capacity（t) Dimensions (inches) Net Weight（kg） A B C 1/4 1/2 0.47 0.31 1.13 0.08 5/16 3/4 0.53 0.38 1.22 0.1 3/8 1 0.66 0.44 1.44 0.15 7/16 1-1/2 0.75 0.5 1.69 0.22 1/2 2 0.81 0.63 1.88 0.36 5/8 3-1/4 1.06 0.75 2.38 0.76 3/4 4-3/4 1.25 0.88 2.81 1.23 7/8 6-1/2 1.44 1 3.31 1.79 1 8-1/2 1.69 1.13 3.75 2.78 1-1/8 9-1/2 1.81 1.25 4.25 3.75 1-1/4 12 2.03 1.38 4.69 5.31 1-3/8 13-1/2 2.25 1.5 5.25 7.18 1-1/2 17 2.38 1.63 5.75 9.43 1-3/4 25 2.88 2 7 15.38 2 35 3.25 2.25 7.75 23.7 2-1/2 55 4.13 2.75 10.5 44.57 3 85 5 3.25 13 69.85 3-1/2 120 5.25 3.75 14.5 120.2 4 150 5.5 4.25 14.63 153.32 Application Construction: Used in hoisting operations, scaffolding erection, and steel structure connections to bear and transfer the pulling force of heavy objects, ensuring construction safety. Marine and Maritime: Suitable for scenarios such as ship mooring, cargo handling, and maritime rescue. It connects cables and hoisting equipment to ensure stable and reliable operations. Industrial Manufacturing: As a key connection component in factory equipment installation, heavy machinery maintenance, and material handling processes, it meets the load requirements of different working conditions. Transportation and Logistics: Used to fix and connect goods on transportation vehicles, preventing goods from shifting or falling during transportation and ensuring transportation safety. FEATURES High Strength and Reliability: Through hardening and annealing processes, the strength and toughness of the material are enhanced. Each shackle body is marked with the working load, facilitating quick identification and selection of appropriate specifications. High Safety Factor: The maximum guaranteed load reaches 2.2 times the working load, and the minimum breaking strength can reach 4 or 6 times the working load as required, providing sufficient safety margins during use. Strong Corrosion Resistance: The electro – galvanized or hot – dip galvanized surface treatment effectively isolates external corrosive media, enhancing the rust – resistance of the shackles and extending their service life. Superior Craftsmanship: The die – forging process makes the shackle structure dense. Combined with alloy steel pins, it has excellent impact – resistance and fatigue – resistance. See our Rigging and Sling catalog for more information!! Leave Your Message Send Like this product? Share to your platform ➔ Related products Steel Wire Rope For Lifts Steel Wire Rope for Aerospace Control Stainless Steel Wire Rope Steel Wire Rope (Ungalvanized and Galvanized) SL Drum clamp Round sling Nylon Rope G80 CHAIN SLING
