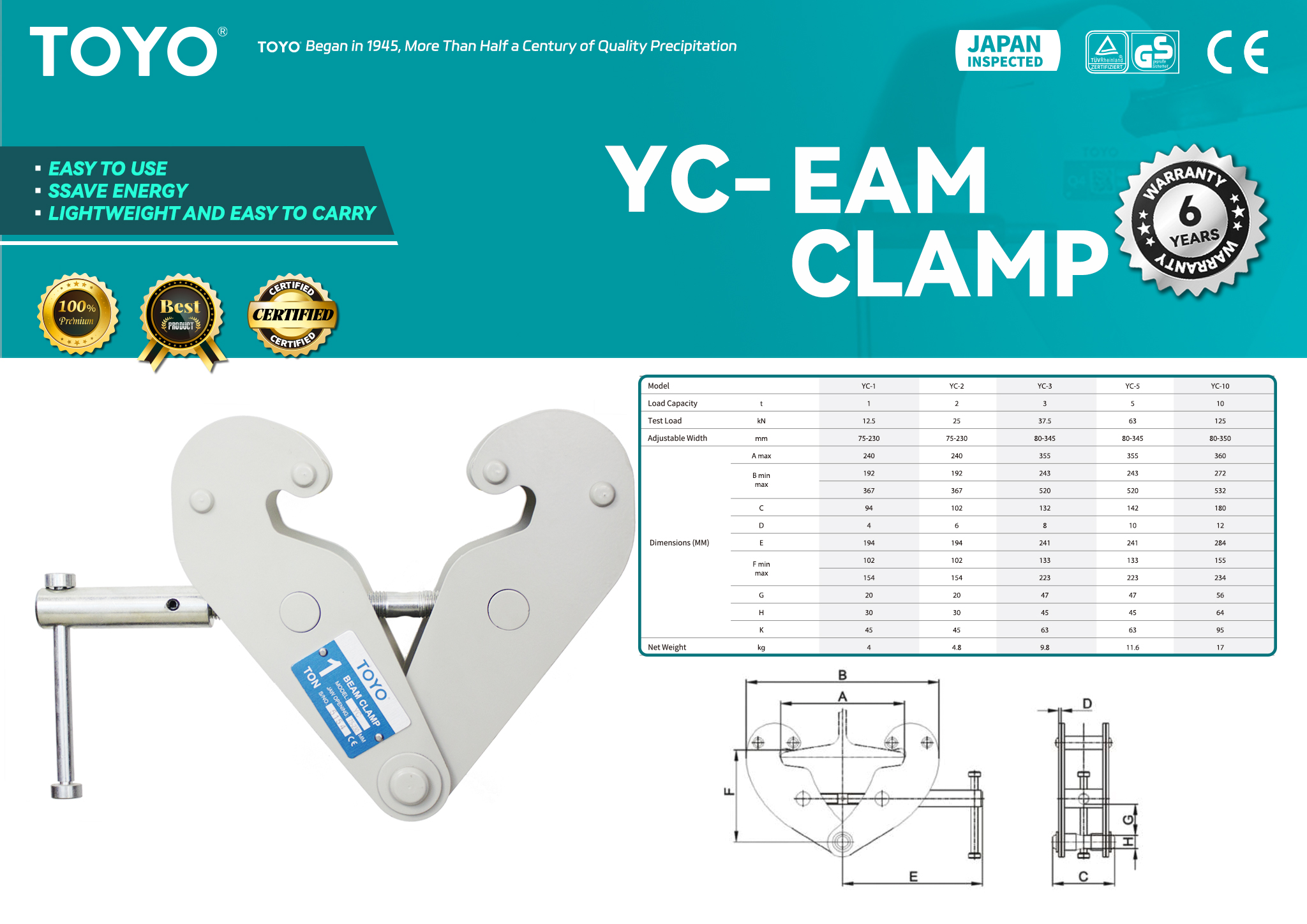

YC-EAM CLAMP BASIC INTRODUCTION Product Name: TOYO YC-EAM CLAMP Product Type: Clamp Material: Alloy steel material Structural Components: The spiral shaft is made of alloy steel material, forged and processed through heat treatment. Product Details Specs Model YC-1 YC-2 YC-3 YC-5 YC-10 Load Capacity t 1 2 3 5 10 Test Load kN 12.5 25 37.5 63 125 Adjustable Width mm 75-230 75-230 80-345 80-345 80-350 Dimensions (MM) A min max 192 192 243 243 272 B min max 367 367 520 520 532 C 94 102 132 142 180 D 4 6 8 10 12 E 194 194 241 241 284 F min max 102 102 133 133 155 154 154 223 223 234 G 20 20 47 47 56 H 30 30 45 45 64 K 45 45 63 63 95 Net Weight kg 4 4.8 9.8 11.6 17 Application In factory lifting scenarios, it can ensure stable lifting. In port transportation scenarios, it has the advantage of being light and fast. In the field of construction engineering, it is easy to use, convenient for equipment movement, and has a strong bearing capacity. FEATURES It has a beautiful appearance and a compact structure. It has a high usage coefficient, with good safety and reliability. The spiral shaft adopts a threaded adjustment for the wide track, and the groove has no eccentric load. There is a groove in the middle of the lifting point, which can make the lifting point centered and avoid eccentric loading. The design of the interactive spiral shaft allows for faster adjustment of the wide track, improving operation efficiency. The humanized design of the jaw can clamp the lower edge of the I-beam, making the operation convenient. There are multiple models available with a complete range of specifications to meet the needs of different users. See our Rigging and Sling Catalog for more info! Leave Your Message Send Like this product? Share to your platform ➔ Related products YG round stock grabs YCS-EAM CLAMP TPH PIPE LIFTING CLAMP PPD HORIZONTAL LIFTING CLAMP PERMANENT MAGNET LIFTER PDQ SINGLE STEEL LIFTING CLAMP PDB HORIZONTAL LIFTING CLAMP OCS-G/OCS-K SCALE DIGITAL CRANE
