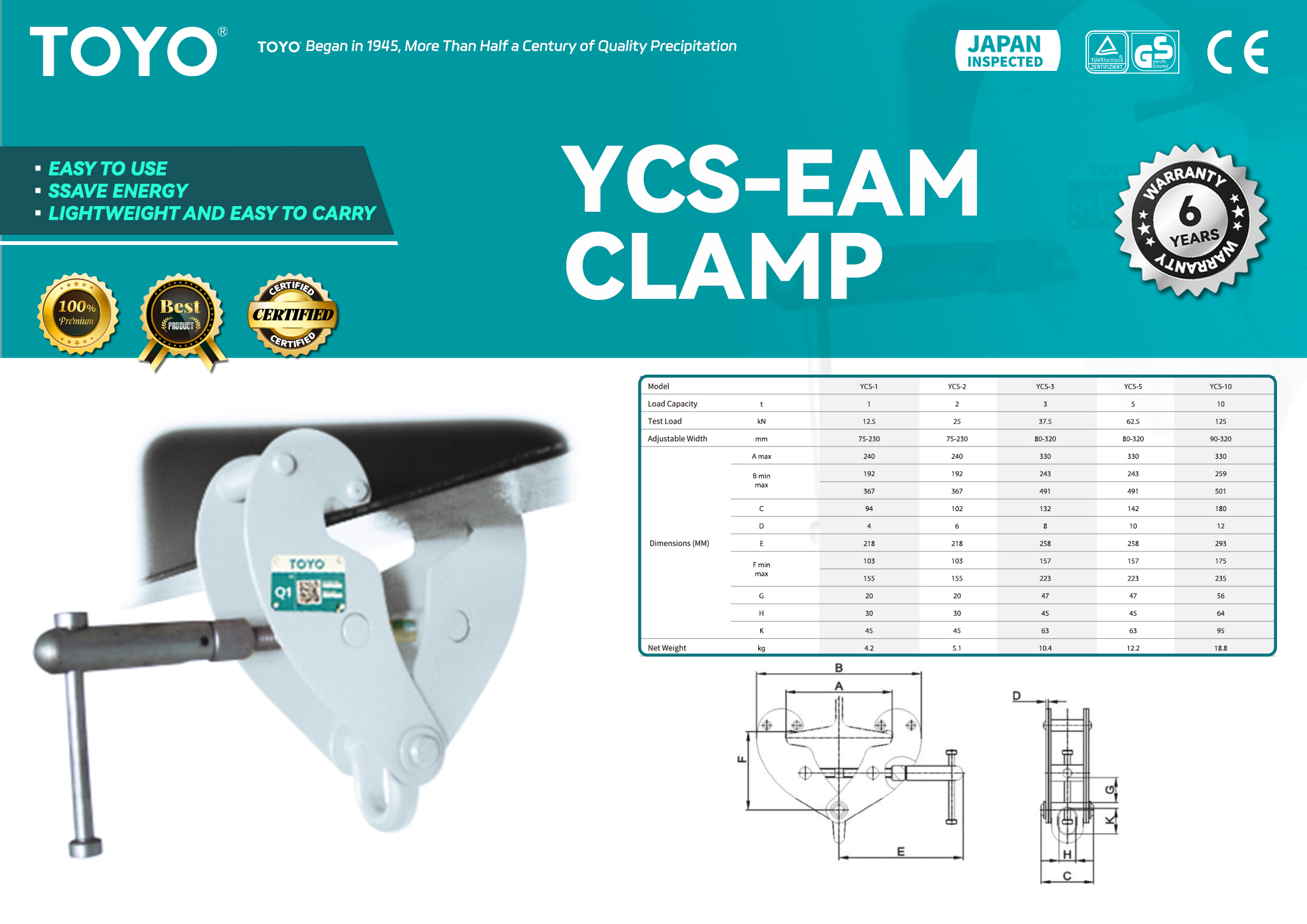

YCS-EAM CLAMP

Product Details

Specs

Model		YCS-1	YCS-2	YCS-3	YCS-5	YCS-10
Load Capacity	t	1	2	3	5	10
Test Load	kN	12.5	25	37.5	62.5	125
Adjustable Width	mm	75-230	75-230	80-320	80-320	90-320
Dimensions (MM)	A min max	192	192	243	243	259
	B min max	367	367	491	491	501
	C	94	102	132	142	180
	D	4	6	8	10	12
	E	218	218	258	258	293
	F min max	103	103	157	157	175
	F min max	155	155	223	223	235
	G	20	20	47	47	56
	H	30	30	45	45	64
	K	45	45	63	63	95
Net Weight	kg	4.2	5.1	10.4	12.2	18.8

Application

In the factory lifting scenarios, it can ensure stable lifting operations.
In port transportation scenarios, it has the advantage of being lightweight and fast.
In the construction engineering field, it is easy to use, convenient for equipment movement, and has a strong load-bearing capacity.

FEATURES

It has an attractive appearance and a compact structure.
It has a high usage coefficient, ensuring good safety and reliability.
The spiral shaft adopts a threaded adjustment for the wide track. The groove has no eccentric load, and there is a groove in the middle of the lifting point, which can keep the lifting point centered and prevent eccentric loading.
The design of the interactive spiral shaft enables quicker adjustment of the wide track, improving operational efficiency.
The humanized design of the clamp jaw can firmly grip the lower edge of the I-beam, making the operation convenient.
There are multiple models available with a complete range of specifications, which can meet the needs of different users.
