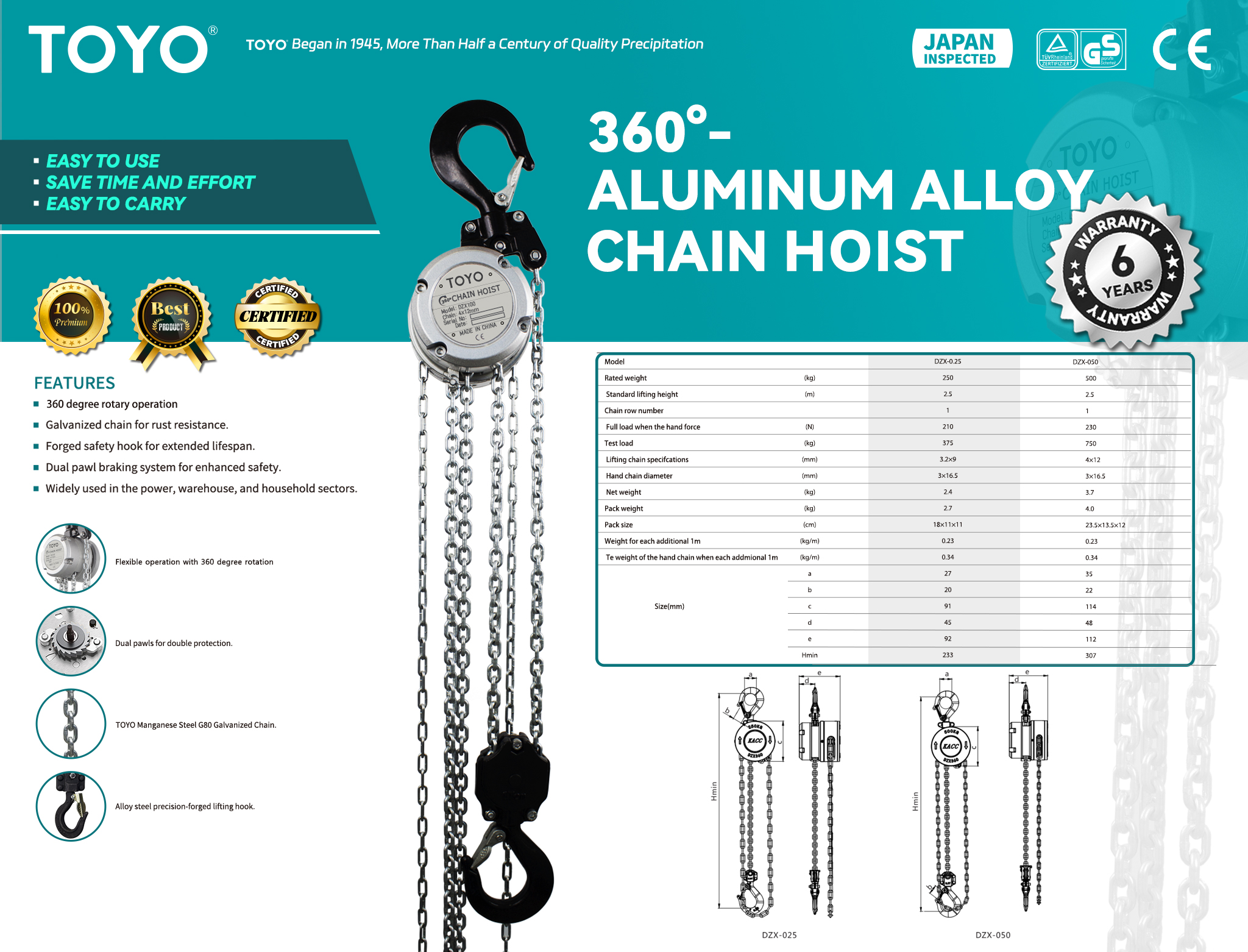

360°Aluminum Alloy Manual Chain Hoist

Specs of 360°Aluminum Alloy Manual Chain Hoist

BASIC INTRODUCTION

As one of the well-known chain hoist suppliers, TOYO provides professional manual chain hoist equipment.The TOYO 360° Aluminum Alloy manual hoist chain is capable of achieving 360° omnidirectional rotation for lifting, without being restricted by spatial angles. It can conveniently adjust the lifting direction in various complex environments. Whether it is indoors or outdoors, in a dry or humid environment, it can operate normally and adapt to different working scenarios and lifting requirements.

FEATURES

360 degree rotary operation
Galvanized chain for rust resistance.
Forged safety hook for extended lifespan.
Dual pawl braking system for enhanced safety.

APPLICATION INDUSTRIES

Widely used in the power, warehouse, and household sectors.

Product Parameters

Model		DZX-0.25	DZX-050
Rated weight	(kg)	250	500
Standard lifting height	(m)	2.5	2.5
Chain row number		1	1
Full load when the hand force	(N)	210	230
Test load	(kg)	375	750
Lifting chain specifcations	(mm)	3.2×9	4×12
Hand chain diameter	(mm)	3×16.5	3×16.5
Size(mm)	a	27	35
	b	20	22
	c	91	114
	d	45	48
	e	92	112
	Hmin	233	307

Logistics Packaging

Net weight	(kg)	2.4	3.7
Pack weight	(kg)	2.7	4
Pack size	(cm)	18×11×11	23.5×13.5×12
Weight for each additional 1m	(kg/m)	0.23	0.23
Te weight of the hand chain when each addmional 1m	(kg/m)	0.34	0.34
