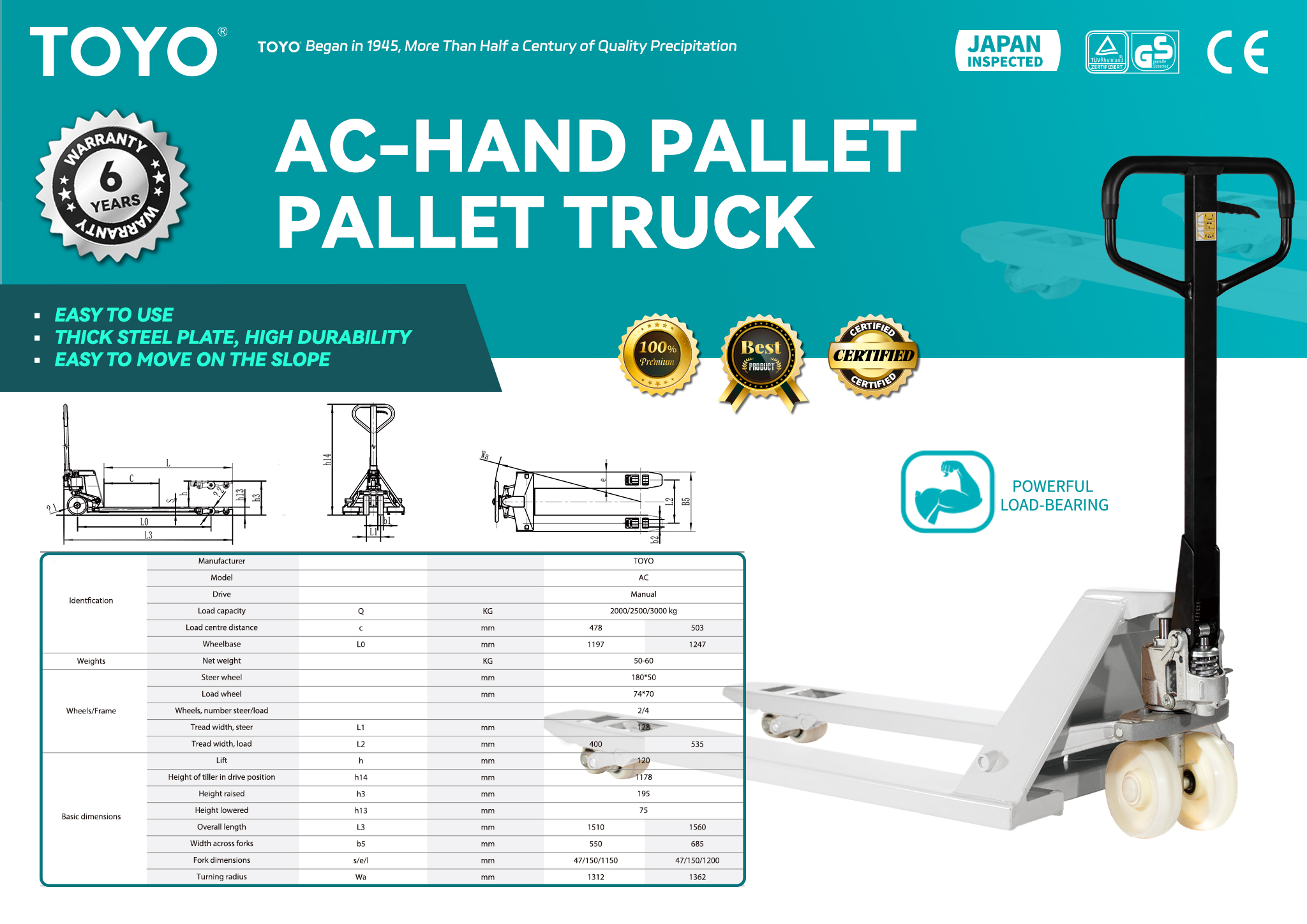

ac-hand pallet pallet truck

Easy tO Use
Thick steel plate, high durability
Easy to move on the slope

See our Pallet Truck Catalog for more info!

Identfication	Manufacturer			TOYO
	Model			AC
	Drive			Manual
	Load capacity	Q	KG	2000/2500/3000 kg
	Load centre distance	c	mm	478	503
	Wheelbase	L0	mm	1197	1247
Weights	Net weight		KG	50-60
Wheels/Frame	Steer wheel		mm	180*50
	Load wheel		mm	74*70
	Wheels, number steer/load			2/4
	Tread width, steer	L1	mm	128
	Tread width, load	L2	mm	400	535
Basic dimensions	Lift	h	mm	120
	Height of tiller in drive position	h14	mm	1178
	Height raised	h3	mm	195
	Height lowered	h13	mm	75
	Overall length	L3	mm	1510	1560
	Width across forks	b5	mm	550	685
	Fork dimensions	s/e/l	mm	47/150/1150	47/150/1200
	Turning radius	Wa	mm	1312	1362
