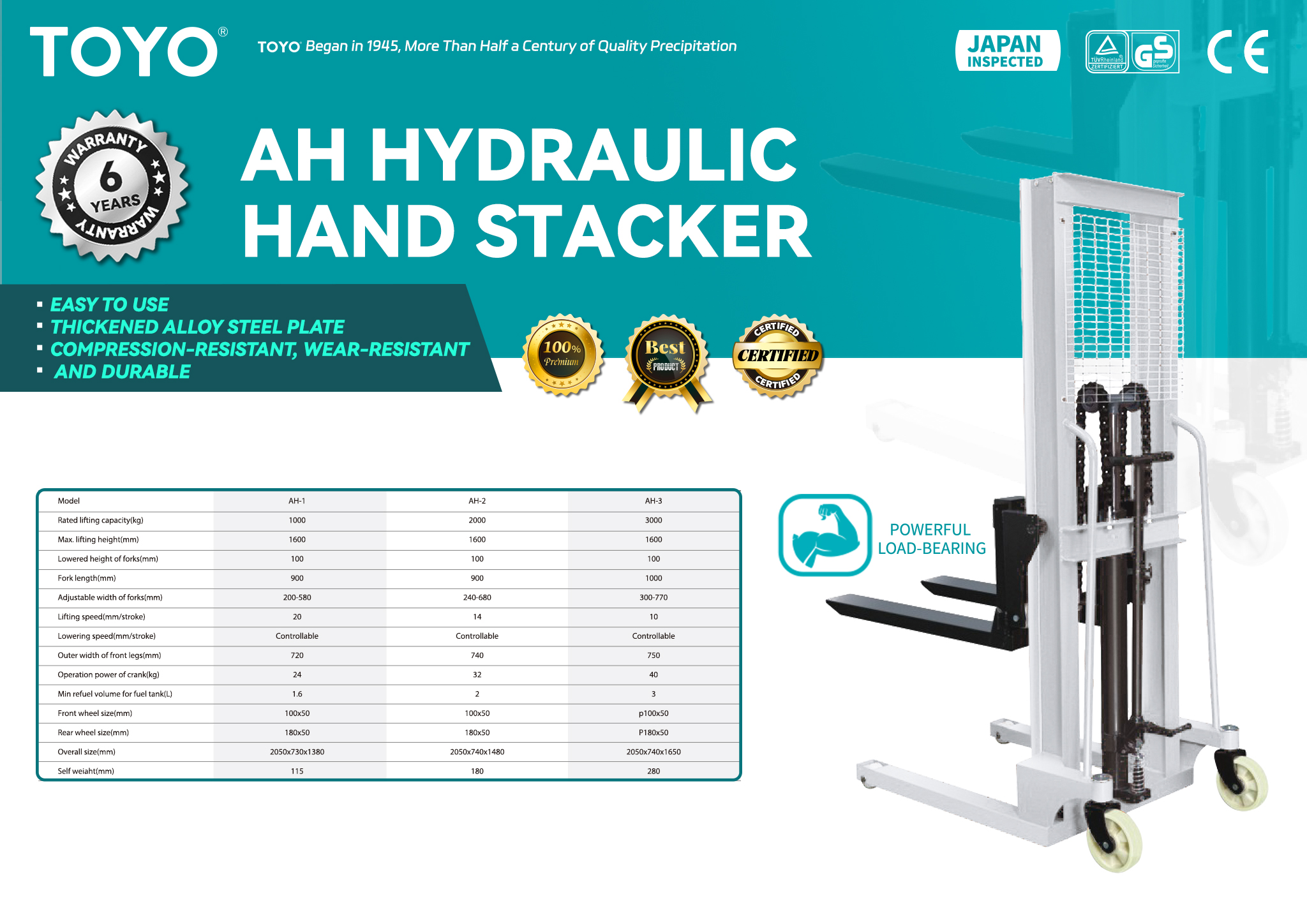

AH Hydraulic Hand Stacker

Easy tO Use
Thickened alloy steel plate
Compression-resistant, wear-resistant
and durable

See our Pallet Truck Catalog for more info!

Model	AH-1	AH-2	AH-3
Rated lifting capacity(kg)	1000	2000	3000
Max. lifting height(mm)	1600	1600	1600
Lowered height of forks(mm)	100	100	100
Fork length(mm)	900	900	1000
Adjustable width of forks(mm)	200-580	240-680	300-770
Lifting speed(mm/stroke)	20	14	10
Lowering speed(mm/stroke)	Controllable	Controllable	Controllable
Outer width of front legs(mm)	720	740	750
Operation power of crank(kg)	24	32	40
Min refuel volume for fuel tank(L)	1.6	2	3
Front wheel size(mm)	100×50	100×50	p100x50
Rear wheel size(mm)	180×50	180×50	P180x50
Overall size(mm)	2050x730x1380	2050x740x1480	2050x740x1650
Self weiaht(mm)	115	180	280
