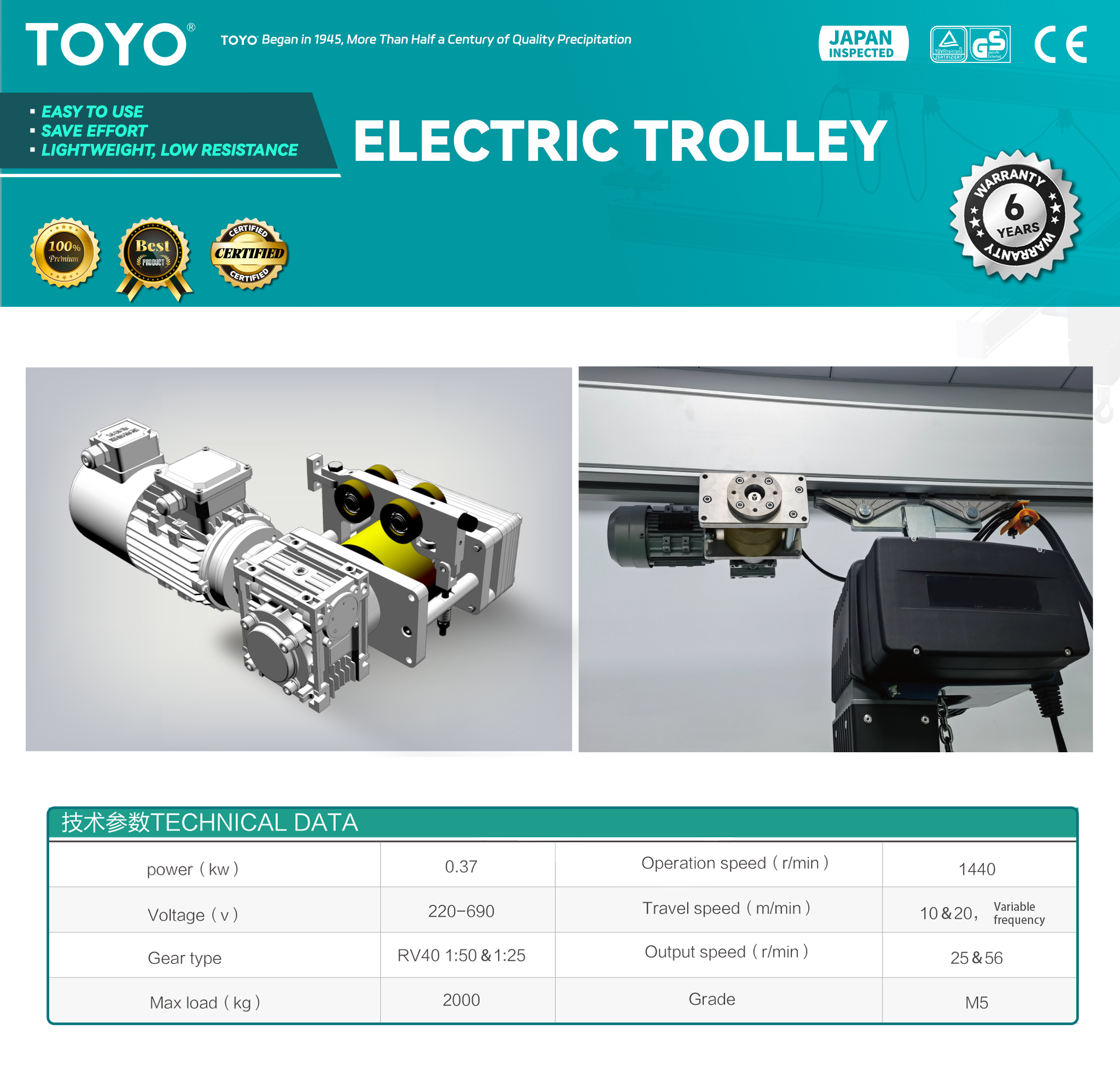

Electric Trolley

BASIC INTRODUCTION

Product Name: TOYO Electric Trolley
Power Parameters: The power is 0.37 kilowatts (kw), and the voltage range is between 220-690 volts (v).
Operation Parameters: The operation speed is 1440 revolutions per minute (r/min). The travel speeds are 10 meters per minute and 20 meters per minute, with variable frequency speed regulation supported. The output speeds are 25 revolutions per minute and 56 revolutions per minute (r/min).
Transmission Components: The gear type is RV40, and the reduction ratios are 1:50 and 1:25 respectively.
Load-bearing Capacity: The maximum load is 2000 kilograms (kg).
Work Level: Level M5.

Product Details

Specs

power(kw)	0.37	Operation speed ( r/min )	1440	500	750	1200	2000
Voltage(v)	220-690
Gear type	RV40 1:50 &1:25	Output speed ( r/min )	25&56	/	/	/	/
Max load ( kg )	2000	Grade	M5	/	/	/	/
M-140	6	5	4	3	/	/	/
L-180	8	6.5	5	3.5	3	/	/
XL-220	9	8	6	5	4	3	/
XXL-260	13	12	9	7	6.5	5	4

FEATURES

Strong Power Adaptability: With a wide voltage application range (220-690 volts), it can adapt to different power environments. The power of 0.37 kw can meet certain work requirements.
Flexible Speed Adjustment: It has a relatively high operation speed, and the travel speed supports variable frequency speed regulation (options of 10 meters per minute and 20 meters per minute). There are also different choices for the output speed (25 revolutions per minute and 56 revolutions per minute), which can be flexibly adjusted according to actual working conditions to improve work efficiency.
Large Load-bearing Capacity: With a maximum load of 2000 kilograms, it can lift heavy objects and is suitable for various work scenarios with load requirements.
Stable and Reliable Operation: The M5 work level indicates that this electric trolley has a certain degree of reliability and durability, and is suitable for moderately busy working conditions.
Efficient Gear Transmission: Using RV40 gears with different reduction ratios (1:50 and 1:25), it can effectively transmit power and meet different speed and torque requirements.

See our Crane Catalog for more info!

Application

Manufacturing Industry: Such as mechanical manufacturing, automotive manufacturing and other factory workshops, it can be used to lift production parts, finished products, etc., to meet the material handling needs of the production line.
Warehousing and Logistics Industry: Handling goods in warehouses. Whether it is shuttling between shelves to transport goods or transferring goods between the loading and unloading area and transport vehicles, this electric trolley can play a role.
Construction Industry: Lifting building materials and equipment on construction sites. For example, transporting building materials from the storage area to the construction floor.
Port and Wharf: It is used to assist in handling containers and goods in ports. Cooperating with equipment such as cranes, it can improve the efficiency of cargo loading, unloading and transportation.
