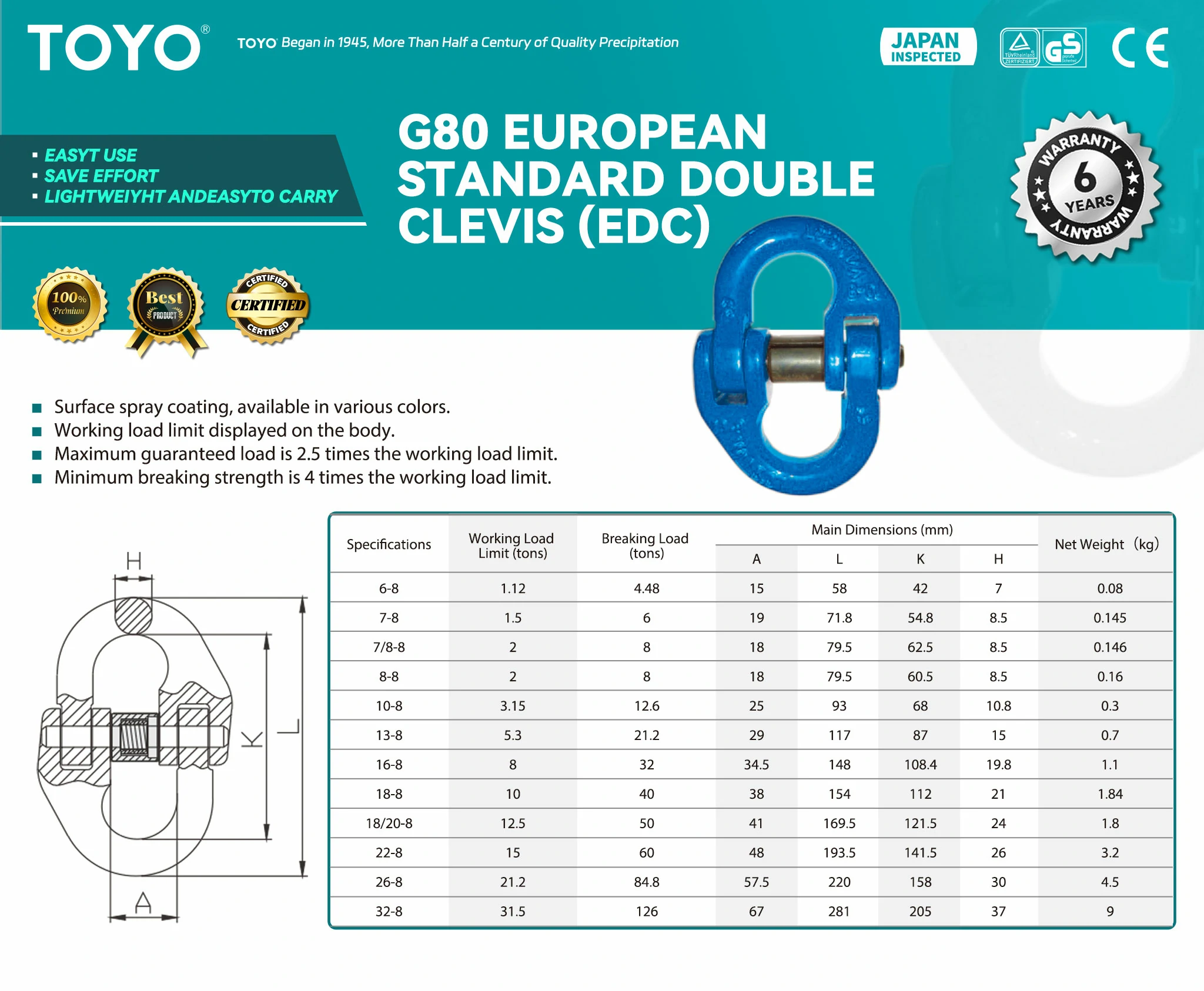

G80 European standard double clevis (EDC)

BASIC INTRODUCTION

Surface: Spray – coated, multi – colored for easy identification.
Marking: Working load limit clearly shown on the body.
Load: Max. guaranteed load 2.5x working load limit; min. breaking strength 4x working load limit.

Product Details

Specs

Specifications	Working Load Limit (tons)	Breaking Load (tons)	Main Dimensions (mm)				Net Weight（kg）
Specifications	Working Load Limit (tons)	Breaking Load (tons)	A	L	K	H	Net Weight（kg）
6-8	1.12	4.48	15	58	42	7	0.08
7-8	1.5	6	19	71.8	54.8	8.5	0.145
7/8-8	2	8	18	79.5	62.5	8.5	0.146
8-8	2	8	18	79.5	60.5	8.5	0.16
10-8	3.15	12.6	25	93	68	10.8	0.3
13-8	5.3	21.2	29	117	87	15	0.7
16-8	8	32	34.5	148	108.4	19.8	1.1
18-8	10	40	38	154	112	21	1.84
18/20-8	12.5	50	41	169.5	121.5	24	1.8
22-8	15	60	48	193.5	141.5	26	3.2
26-8	21.2	84.8	57.5	220	158	30	4.5
32-8	31.5	126	67	281	205	37	9

Application

Industrial: For connecting and lifting heavy components in machinery manufacturing.
Construction: Ideal for hoisting building materials and structural parts.
Logistics: Used to connect slings and heavy goods during loading/unloading.
Marine: Resists corrosion, suitable for connecting marine equipment in shipbuilding and offshore projects.

FEATURES

Visual Diversity: Multiple colors meet aesthetic needs and help distinguish specifications.
Clear Indication: Working load limit marking prevents overloading.
High Safety: Strong load – bearing with sufficient safety margins against unexpected stresses.
