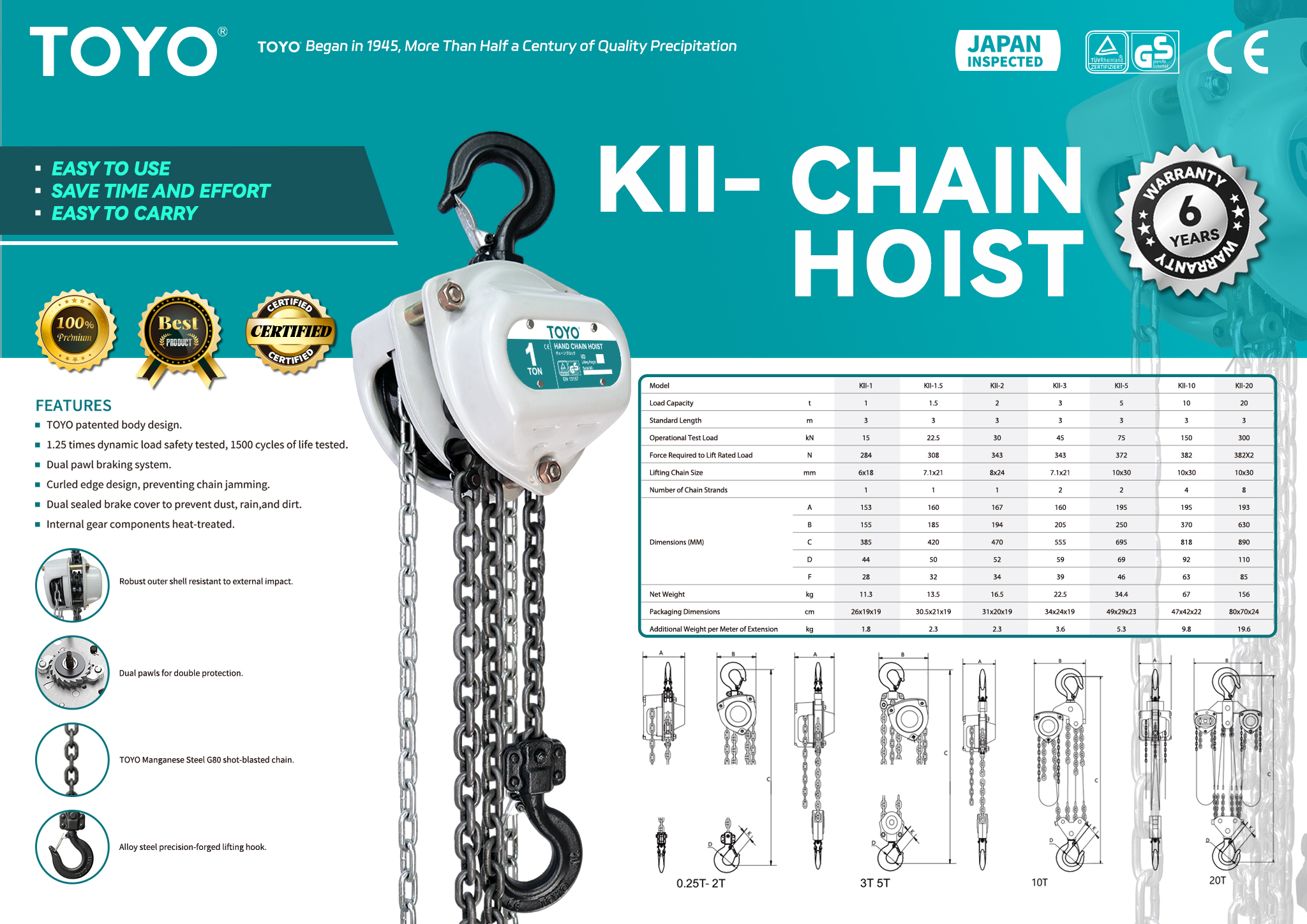

KII Manual Chain Hoist 1-20 Tons, With G80 Chain, Hooks With Safety Factor 1:4

Specs of KII Manual Chain Hoist

BASIC INTRODUCTION

The KII Aluminum Alloy Chain Hoist is a paragon of innovation and reliability in the lifting equipment market. It features a TOYO patented body design that not only optimizes functionality but also enhances its overall aesthetics and space – utilization efficiency. Rigorously tested with 1.25 times dynamic load safety testing and 1500 cycles of life testing, it guarantees outstanding performance and long – term durability in various working conditions.

FEATURES

TOYO patented body design.
1.25 times dynamic load safety tested, 1500 cycles of life tested.
Dual pawl braking system.
Curled edge design, preventing chain jamming.
Dual sealed brake cover to prevent dust, rain,and dirt.
Internal gear components heat-treated.Robust outer shell resistant to external impact.Dual pawls for double protection.T”

APPLICATION INDUSTRIES

This versatile KII Aluminum Alloy Chain Hoist finds extensive applications across multiple industries. In the manufacturing industry, the ratchet hoist is used for the precise lifting and positioning of heavy machinery parts during production and assembly. In construction projects, it aids in the efficient transportation of building materials, whether it’s on high-rise construction sites or in small-scale renovations. Warehouses rely on this ratchet hoist for the smooth handling, loading, and unloading of goods. Even in the home improvement and DIY sector, it proves to be an invaluable tool for small-scale but heavy-duty lifting tasks.

Product parameters

Model		KII-1	KII-1.5	KII-2	KII-3	KII-5	KII-10	KII-20
Load Capacity		1	1.5	2	3	5	10	20
Standard Length	t	3	3	3	3	3	3	3
Operational Test Load	m	15	22.5	30	45	75	150	300
Force Required to Lift Rated Load	kN	284	308	343	343	372	382	382X2
Lifting Chain Size	N	6×18	7.1×21	8×24	7.1×21	10×30	10×30	10×30
Number of Chain Strands	mm	1	1	1	2	2	4	8
Dimensions (MM)	A	153	160	167	160	195	195	193
	B	155	185	194	205	250	370	630
	C	385	420	470	555	695	818	890
	D	44	50	52	59	69	92	110
	F	28	32	34	39	46	63	85
Net Weight	kg	11.3	13.5	16.5	22.5	34.4	67	156
Packaging Dimensions	cm	26x19x19	30.5x21x19	31x20x19	34x24x19	49x29x23	47x42x22	80x70x24
Additional Weight per Meter of Extension	kg	1.8	2.3	2.3	3.6	5.3	9.8	19.6

TOYO Heavy Industries, a leading chain hoist supplier based in Hebei Province, China, has over 30 years of experience in the manufacturing industry. The company originated from the acquisition of a renowned Japanese corporation, which laid the foundation for TOYO’s commitment to quality and innovation. Today, TOYO stands as a prominent force in the market, specializing in the design and production of premium manual chain hoists, lever hoists, electric chain hoists, lifting clamps, and high-tensile slings. With a strong heritage and technical expertise, TOYO continues to deliver reliable lifting solutions to customers worldwide.
