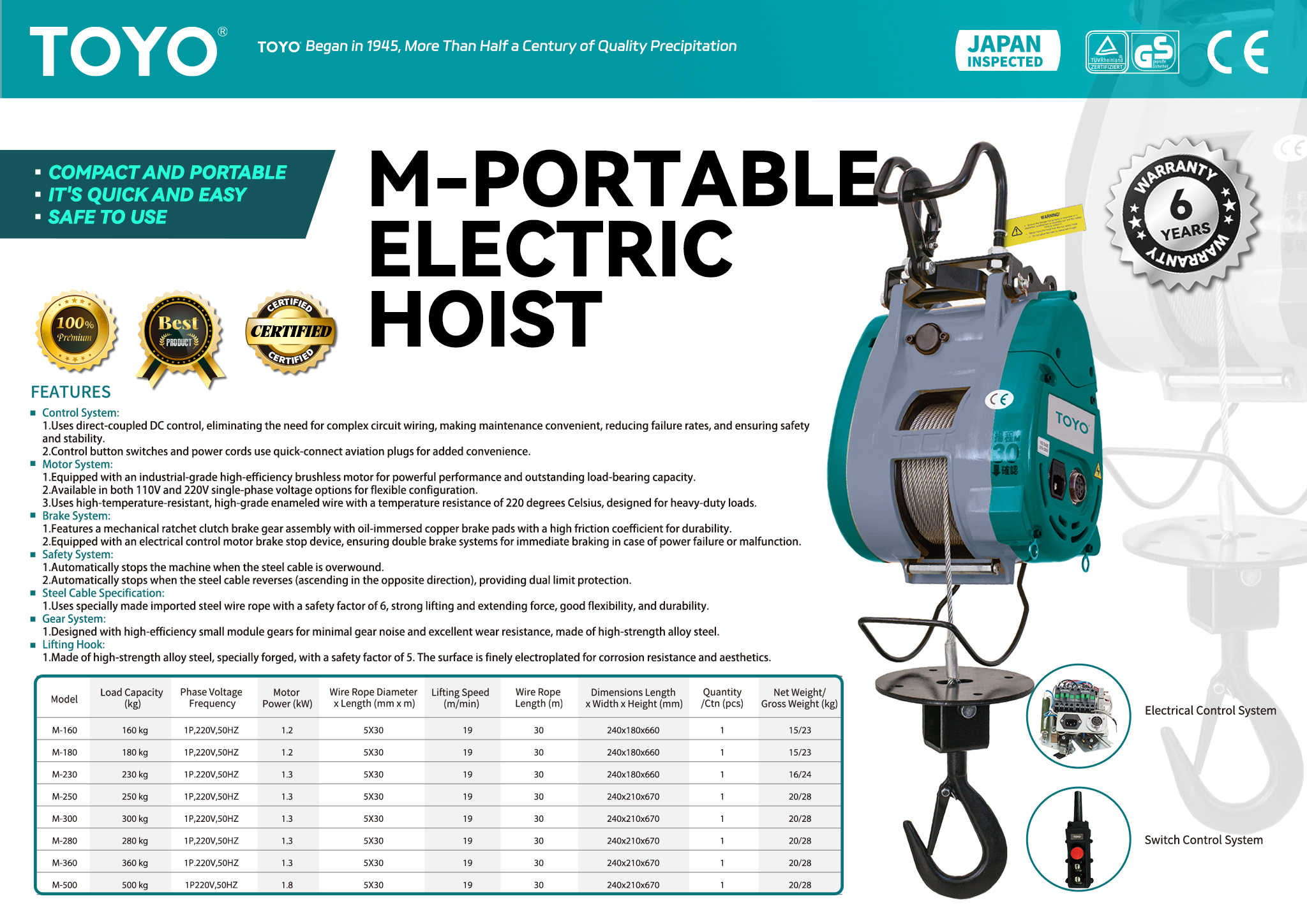

M-PORTABLE ELECTRIC HOIST

BASIC INTRODUCTION

Control System: It adopts direct-coupled DC control. The control button switches and power cords use quick-connect aviation plugs.
Motor System: Equipped with an industrial-grade high-efficiency brushless motor. It offers two single-phase voltage options of 110V and 220V. The motor uses high-grade enameled wire with a temperature resistance of 220 degrees Celsius.
Brake System: Comprises a mechanical ratchet clutch brake gear assembly with oil-immersed copper brake pads and is equipped with an electrical control motor brake stop device.
Safety System: It has functions of automatically stopping when the steel cable is overwound and when it reverses, providing dual limit protection.
Steel Cable Specification: It uses specially made imported steel wire rope with a safety factor of 6.
Gear System: High-efficiency small module gears made of high-strength alloy steel are applied.
Lifting Hook: Made of high-strength alloy steel through special forging, with a safety factor of 5 and a finely electroplated surface.

Product Details

Specs

Model	Load Capacity (kg)	Phase Voltage Frequency	Motor Power (kW)	Wire Rope Diameter x Length (mm x m)	Lifting Speed (m/min)	Wire Rope Length (m)	Dimensions: Length x Width x Height (mm)	Quantity /Ctn (pcs)	Net Weight/ Gross Weight (kg)
M-160	160 kg	1P,220V,50HZ	1.2	5X30	19	30	240x180x660	1	15/23
M-180	180 kg	1P,220V,50HZ	1.2	5X30	19	30	240x180x660	1	15/23
M-230	230 kg	1P.220V,50HZ	1.3	5X30	19	30	240x180x660	1	16/24
M-250	250 kg	1P,220V,50HZ	1.3	5X30	19	30	240x210x670	1	20/28
M-300	300 kg	1P,220V,50HZ	1.3	5X30	19	30	240x210x670	1	20/28
M-280	280 kg	1P,220V,50HZ	1.3	5X30	19	30	240x210x670	1	20/28
M-360	360 kg	1P.220V,50HZ	1.3	5X30	19	30	240x210x670	1	20/28
M-500	500 kg	1P220V,50HZ	1.8	5X30	19	30	240x210x670	1	20/28

Application

The applicable industries are not clearly mentioned in the document. However, based on the product features, it can be inferred that it is suitable for various industries that require small electric hoists for lifting operations, such as factories for equipment installation and cargo handling, mines for material lifting, construction sites for lifting building materials, and logistics warehouses for cargo loading and unloading. The product can play a role in some occasions with high requirements for the safety, reliability, and portability of lifting equipment.

FEATURES

Convenient Control: The direct-coupled DC control reduces complex wiring, making maintenance convenient, with a low failure rate, ensuring safety and stability. The aviation plug connection is convenient to use.
Powerful Performance: The industrial-grade brushless motor provides strong performance and excellent load-bearing capacity. Flexible voltage options can adapt to different scenarios. The high-temperature-resistant enameled wire is suitable for heavy-duty loads.
Reliable Braking: The combination of mechanical and electrical braking systems ensures rapid braking and strong durability.
High Safety: Multiple protections for the steel cable, high safety factor, and durable and protective components.
Smooth Operation: The high-efficiency gears feature low noise and good wear resistance, ensuring smooth operation.
