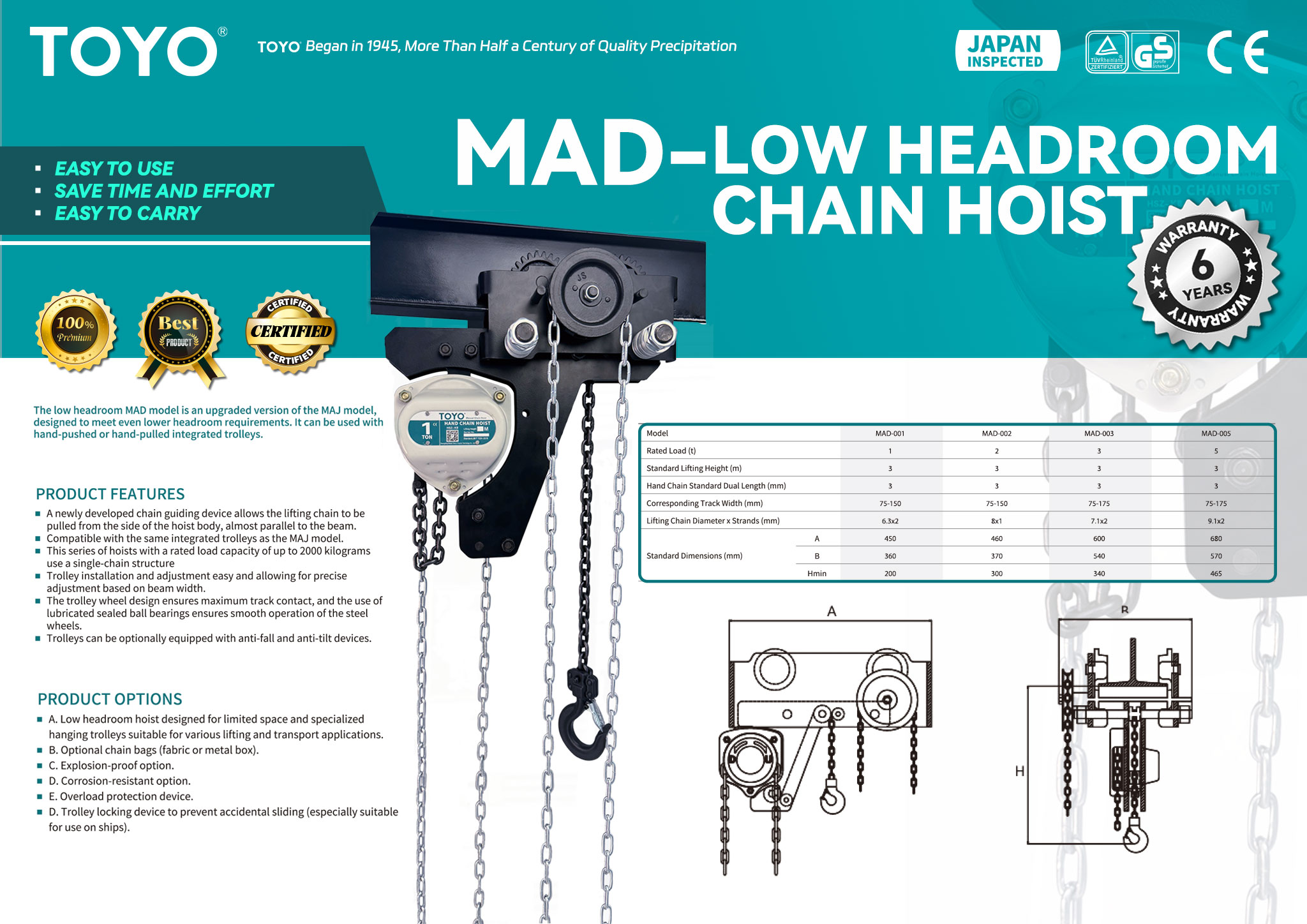

MAD Low Headroom Manual Chain Hoist

A newly developed chain guiding device allows the lifting chain to bepulled from the side of the hoist body, almost parallel to the beam.
Compatible with the same integrated trolleys as the MAJ model.
This series of hoists with a rated load capacity of up to 2000 kilogramsuse a single-chain structure
Trolley installation and adjustment easy and allowing for preciseadjustment based on beam width.
mThe trolley wheel design ensures maximum track contact, and the use oflubricated sealed ball bearings ensures smooth operation of the steelwheels.
Trolleys can be optionally equipped with anti-fall and anti-tilt devices.

Specs of MAD Low Headroom Manual Chain Hoist

BASIC INTRODUCTION

The low headroom MAD model is an upgraded version of the MAJ model,designed to meet even lower headroom requirements. lt can be used withhand-pushed or hand-pulled integrated trolleys.

FEATURES

A newly developed chain guiding device allows the lifting chain to be pulled from the side of the hoist body, almost parallel to the beam.Compatible with the same integrated trolleys as the MAJ model.This series of hoists with a rated load capacity of up to 2000 kilograms use a single-chain structure Trolley installation and adjustment easy and allowing for precise adjustment based on beam width.The trolley wheel design ensures maximum track contact, and the use of lubricated sealed ball bearings ensures smooth operation of the steel wheels.
Hoist trolleys can be optionally equipped with anti-fall and anti-tit devices.

APPLICATION INDUSTRIES

The MAD – Low Headroom Chain Hoist, produced by a reliable chain hoist manufacturer, can be applied in various industries such as major factories, warehouses, logistics, docks, and construction. It is used for lifting or loading and unloading goods, and can also lift heavy objects for work or the repair of large machinery.

Product parameters

Model		MAD-001	MAD-002	MAD-003	MAD-005
Rated Load (t)		1	2	3	5
Standard Lifting Height (m)		3	3	3	3
Hand Chain Standard Dual Length (mm)		3	3	3	3
Corresponding Track Width (mm)		75-150	75-150	75-175	75-175
Lifting Chain Diameter x Strands (mm)		6.3×2	8×1	7.1×2	9.1×2
Standard Dimensions (mm)	A	450	460	600	680
	B	360	370	540	570
	Hmin	200	300	340	465
