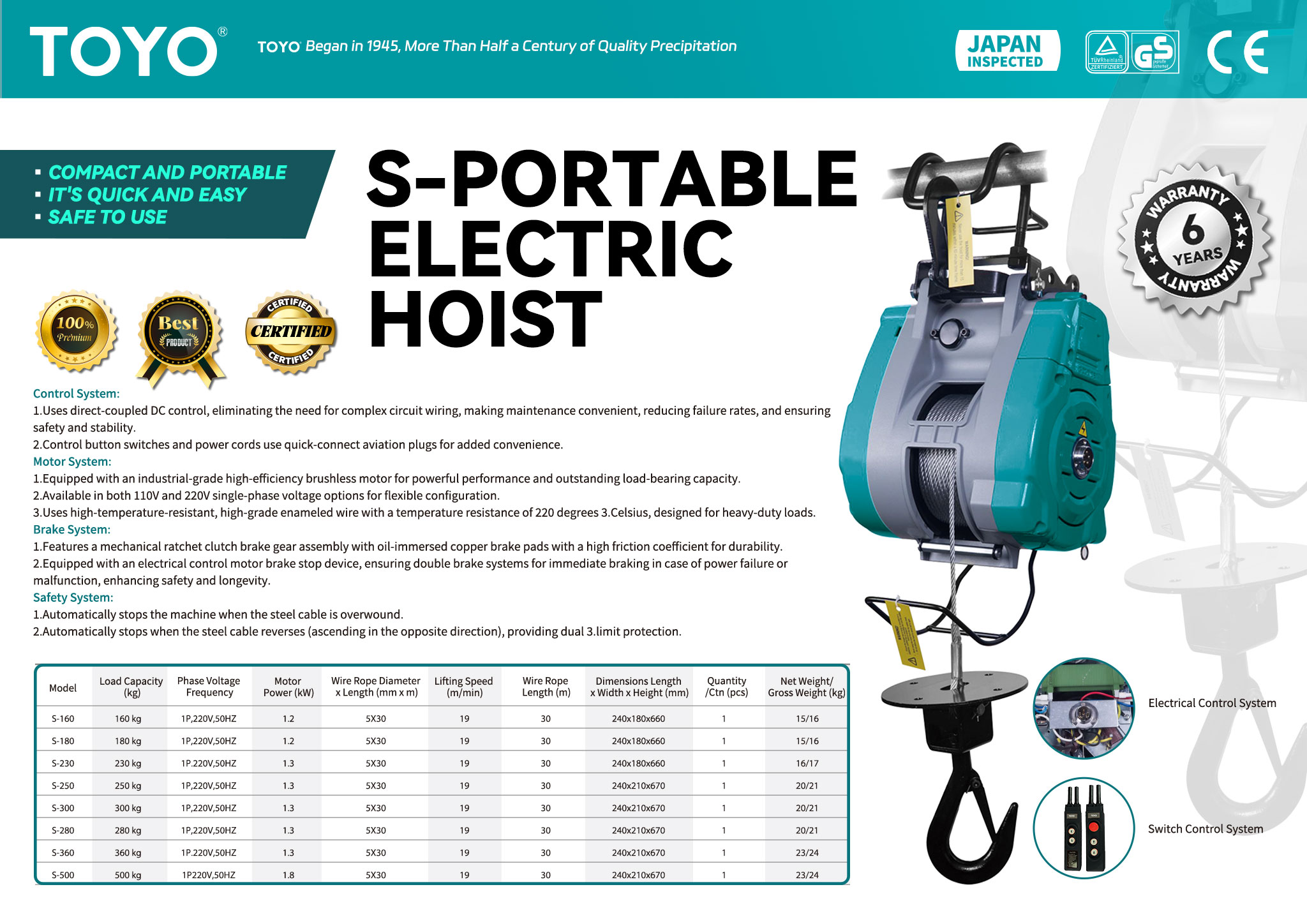

S-PORTABLE ELECTRIC HOIST

BASIC INTRODUCTION

Control System: Adopts direct – coupled DC control. Control button switches and power cords are equipped with quick – connect aviation plugs.
Motor System: Features an industrial – grade high – efficiency brushless motor. Offers two single – phase voltage options, 110V and 220V. Utilizes high – grade enameled wire with a temperature resistance of 220°C.
Brake System: Comprises a mechanical ratchet clutch brake gear assembly with oil – immersed copper brake pads and an electrical control motor brake stop device.
Safety System: Automatically stops the hoist when the steel cable is overwound or reverses, providing dual – limit protection.

Product Details

Specs

Model	Load Capacity (kg)	Phase Voltage Frequency	Motor Power (kW)	Wire Rope Diameter x Length (mm x m)	Lifting Speed (m/min)	Wire Rope Length (m)	Dimensions: Length x Width x Height (mm)	Quantity /Ctn (pcs)	Net Weight/ Gross Weight (kg)
S-160	160 kg	1P,220V,50HZ	1.2	5X30	19	30	240x180x660	1	15/16
S-180	180 kg	1P,220V,50HZ	1.2	5X30	19	30	240x180x660	1	15/16
S-230	230 kg	1P.220V,50HZ	1.3	5X30	19	30	240x180x660	1	16/17
S-250	250 kg	1P,220V,50HZ	1.3	5X30	19	30	240x210x670	1	20/21
S-300	300 kg	1P,220V,50HZ	1.3	5X30	19	30	240x210x670	1	20/21
S-280	280 kg	1P,220V,50HZ	1.3	5X30	19	30	240x210x670	1	20/21
S-360	360 kg	1P.220V,50HZ	1.3	5X30	19	30	240x210x670	1	23/24
S-500	500 kg	1P220V,50HZ	1.8	5X30	19	30	240x210x670	1	23/24

Application

Manufacturing Industry: Used for the installation and debugging of various factory equipment and the hoisting of components. Its stable performance and good load – bearing capacity can meet the material handling requirements of production lines.
Warehousing and Logistics Industry: Ideal for the loading, unloading, and handling of goods in warehouses. Its easy operation and safety protection features can efficiently complete the hoisting and transfer of goods, improving warehouse operation efficiency.
Construction Industry: Suitable for the vertical transportation of construction materials at construction sites, such as hoisting steel and cement. The safety system ensures construction safety, and the flexible voltage configuration can adapt to different construction site power conditions.
Equipment Maintenance Industry: When hoisting and moving various mechanical equipment in maintenance workshops, the product’s easy operation and maintenance features can enhance the efficiency of maintenance work.

FEATURES

Convenient and Efficient Control: The direct – coupled DC control simplifies the circuit, reducing failure rates, facilitating maintenance, and ensuring safety and stability. The aviation plug connection adds extra convenience.
Powerful Performance: The industrial – grade brushless motor provides strong power and excellent load – bearing capacity. Flexible voltage options adapt to different scenarios, and the high – temperature – resistant enameled wire is suitable for heavy – duty operations.
Safe and Reliable Braking: The dual – brake system enables quick braking, ensuring immediate stops in case of power failure or malfunctions. The brake pads are durable.
Comprehensive Safety Protection: Dual – limit protection for the steel cable effectively prevents safety accidents caused by cable abnormalities.

See our Winch Catalog for more info!
