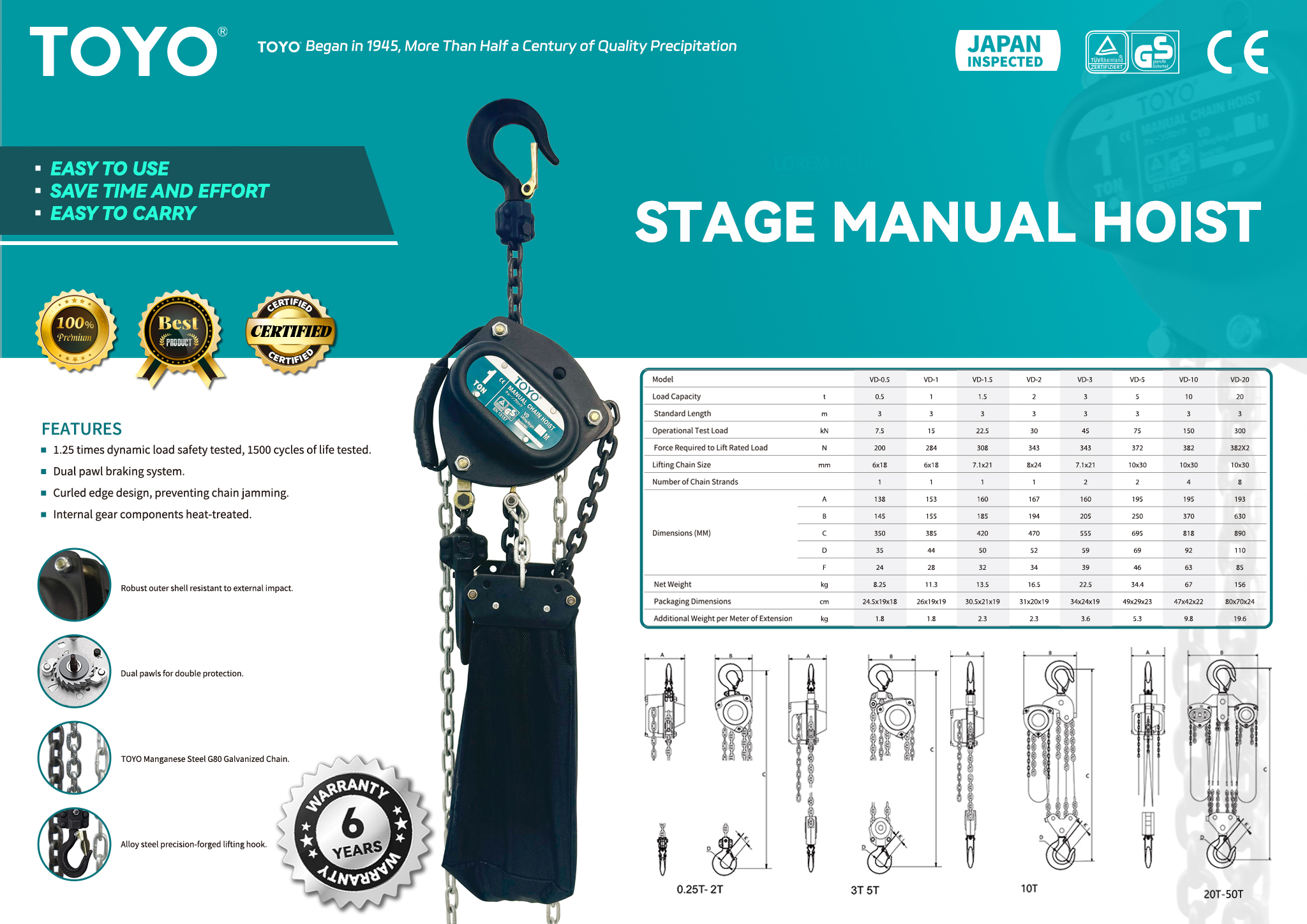

STAGE MANUAL HOIST BASIC INTRODUCTION Product Name: TOYO STAGE MANUAL HOIST Chain Material: Made of TOYO G80 manganese steel galvanized chain. Hook Material: The lifting hook is precision-forged from alloy steel. Braking System: Equipped with a dual pawl braking system. Testing Standards: It has passed a 1.25 times dynamic load safety test and a 1500-cycle life test. Product Details Specs Model VD-0.5 VD-1 VD-1.5 VD-2 VD-3 VD-5 VD-10 VD-20 Load Capacity t 0.5 1 1.5 2 3 5 10 20 Standard Length m 3 3 3 3 3 3 3 3 Operational Test Load kN 7.5 15 22.5 30 45 75 150 300 Force Required to Lift Rated Load N 200 284 308 343 343 372 382 382X2 Lifting Chain Size mm 6×18 6×18 7.1×21 8×24 7.1×21 10×30 10×30 10×30 Number of Chain Strands 1 1 1 1 2 2 4 8 Dimensions (MM) A 138 153 160 167 160 195 195 193 B 145 155 185 194 205 250 370 630 C 350 385 420 470 555 695 818 890 D 35 44 50 52 59 69 92 110 F 24 28 32 34 39 46 63 85 Net Weight kg 8.25 11.3 13.5 16.5 22.5 34.4 67 156 Packaging Dimensions cm 24.5x19x18 26x19x19 30.5x21x19 31x20x19 34x24x19 49x29x23 47x42x22 80x70x24 Additional Weight per Meter of Extension kg 1.8 1.8 2.3 2.3 3.6 5.3 9.8 19.6 Application Stage Performing Arts Industry: In stage scenes such as theaters, concert halls, and concerts, it is used to lift stage scenery, lighting equipment, sound devices, etc. Its safe and reliable performance and clever design can meet the hoisting requirements of stage equipment, and the dual pawl braking system can ensure the stable operation of the equipment during performances. Film and Television Production Industry: In film and television shooting scenes, it can be used to lift cameras, lighting rigs, and other equipment to meet the needs of multi-angle shooting. The high-quality materials and durable components enable it to adapt to frequent hoisting and moving of equipment, providing reliable support for film and television shooting. Small-scale Warehousing and Logistics Industry: In small warehouses or logistics stations, it is used to lift small and medium-sized goods. The alloy steel precision-forged lifting hook and high-strength chain can bear a certain weight of goods, meeting the needs of goods handling in warehousing and logistics. Equipment Installation and Maintenance Industry: In the installation and maintenance of various equipment, this manual hoist can be used to lift and move equipment components. Its sturdy structure and safe braking system can ensure the safety of the operation process. FEATURES 1.25 times dynamic load safety tested, 1500 cycles of life tested. Dual pawl braking system. Curled edge design, preventing chain jamming. Internal gear components heat-treated. See our Stage Hoist Catalog for more info! Leave Your Message Send Like this product? Share to your platform ➔ Related products * No related products
