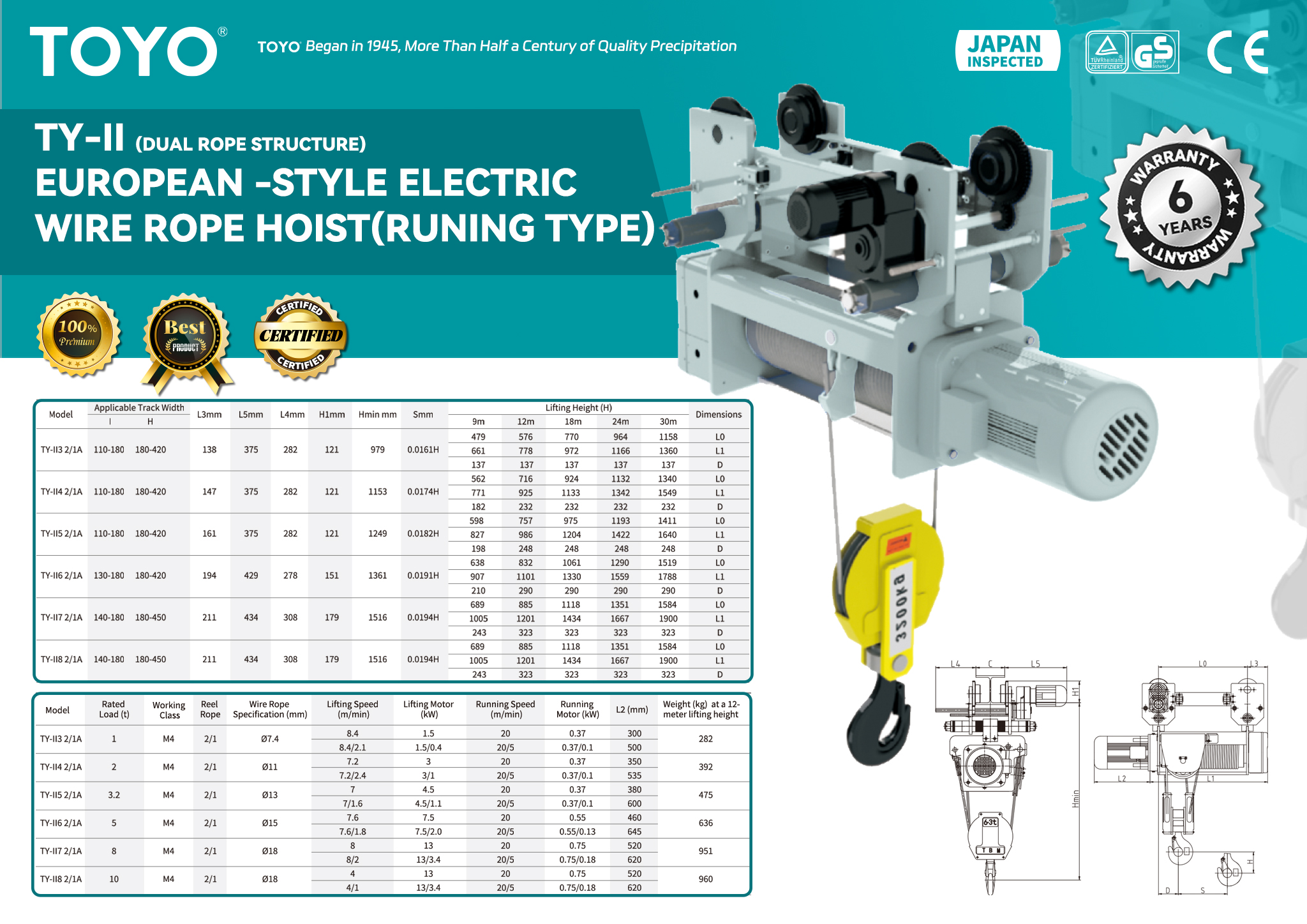

TY-II (DUAL ROPE STRUCTURE)EUROPEAN -STYLE ELECTRIC WIRE ROPE HOIST(RUNING TYPE) BASIC INTRODUCTION Product Name: TOYO TWH European Electric Wire Rope Hoist Key Components Lifting Motor: German-imported variable pole induction motor, equipped with an electromagnetic disc-type brake and a hardened gearbox. Running Motor: Specialized variable-frequency motor, equipped with an electromagnetic disc-type brake and a hardened gearbox. Electrical Components: Brands of Schneider and Phoenix. Wheels: Modular design, made of alloy steel after heat treatment. Guide Roller: Made of high-strength nylon. Wire Rope: Galvanized, with a strength of 2160N/mm². Drum: Made of high-quality steel. Control: A remote controller with strong anti-interference ability, and the remote control distance is 100 meters. Load Limiter: High-sensitivity load limiter, which can be adjusted according to requirements. Lifting Hook: Forged alloy steel hook, equipped with a safety latch and a high-strength nylon wheel. Main Frame: Formed by die-stamping or steel plate bending, non-welded. Limit Switch: Adjustable in four directions. Product Details of 1 ton electric hoist Specs of 1 ton electric hoist Model Applicable Track Width L3mm L5mm L4mm H1mm Hmin mm Smm Lifting Height (H) Dimensions I H 9m 12m 18m 24m 30m TY-II3 2/1A 110-180 180-420 138 375 282 121 979 0.0161H 479 576 770 964 1158 L0 661 778 972 1166 1360 L1 137 137 137 137 137 D TY-II4 2/1A 110-180 180-420 147 375 282 121 1153 0.0174H 562 716 924 1132 1340 L0 771 925 1133 1342 1549 L1 182 232 232 232 232 D TY-II5 2/1A 110-180 180-420 161 375 282 121 1249 0.0182H 598 757 975 1193 1411 L0 827 986 1204 1422 1640 L1 198 248 248 248 248 D TY-II6 2/1A 130-180 180-420 194 429 278 151 1361 0.0191H 638 832 1061 1290 1519 L0 907 1101 1330 1559 1788 L1 210 290 290 290 290 D TY-II7 2/1A 140-180 180-450 211 434 308 179 1516 0.0194H 689 885 1118 1351 1584 L0 1005 1201 1434 1667 1900 L1 243 323 323 323 323 D TY-II8 2/1A 140-180 180-450 211 434 308 179 1516 0.0194H 689 885 1118 1351 1584 L0 1005 1201 1434 1667 1900 L1 243 323 323 323 323 D Rated Load (t) Working Class Reel Rope Wire Rope Specification (mm) Lifting Speed (m/min) Lifting Motor (kW) Running Speed (m/min) Running Motor (kW) L2 (mm) Weight (kg) at a 12- meter lifting height 1 M4 2/1 Ø7.4 8.4 1.5 20 0.37 300 282 8.4/2.1 1.5/0.4 20/5 0.37/0.1 500 （2） M4 2/1 Ø11 7.2 3 20 0.37 350 392 7.2/2.4 3/1 20/5 0.37/0.1 535 3.2 M4 2/1 Ø13 7 4.5 20 0.37 380 475 7/1.6 4.5/1.1 20/5 0.37/0.1 600 5 M4 2/1 Ø15 7.6 7.5 20 0.55 460 636 7.6/1.8 7.5/2.0 20/5 0.55/0.13 645 8 M4 2/1 Ø18 8 13 20 0.75 520 951 8/2 13/3.4 20/5 0.75/0.18 620 10 M4 2/1 Ø18 4 13 20 0.75 520 960 4/1 13/3.4 20/5 0.75/0.18 620 FEATURES The motors have reliable performance, and the electrical components are from well-known brands. Components such as wheels, guide rollers, and wire ropes are made of excellent materials. Flexible control, the load limiter is adjustable, and the hook has good safety. The main frame has a special process, and the limit switch is convenient to adjust. View our Electric Hoist Catalog for more!! Application Industrial manufacturing, such as automotive, machinery, and heavy equipment manufacturing. Warehousing and logistics. Construction. Port terminals. Power and metallurgy industries. Can be used as a 1 ton electric hoist. Leave Your Message Send Like this product? Share to your platform ➔ Related products Intelligent Aided Lifting Equipment TY-II (Four-rope structure)EUROPEAN- STYLE ELECTRIC WIRE ROPE HOIST(RUNING TYPE) TWH European Electric Wire Pope Hoist MD1-WIRE POPE ELECTRIC HOIST CD1 Wirerope Electric Hoist TOYO ty2-ELECTRIC CHAIN HOIST TOYO TY1 FIXED TYPEELECTRIC CHAIN HOIST TWIN HOOK ELECTRIC CHAIN HOIST
