VD Manual Chain Hoist 1-5 Tons, With G80 Chain, Hooks With Safety Factor 1:4

Gearbox Durability

The gearbox and brake cover feature bag-type nuts for fasteners, protecting bolts and significantly enhancing maintenance convenience.

Bearing Structure

TOYO employs a unique gearshaft design with needle bearings used for both end support and primary bearings.

Double Pawl Springs

TOYO’s distinctive double pawl spring structure ensures that even if one pawl spring is damaged, the other supports normal operation, improving product durability.

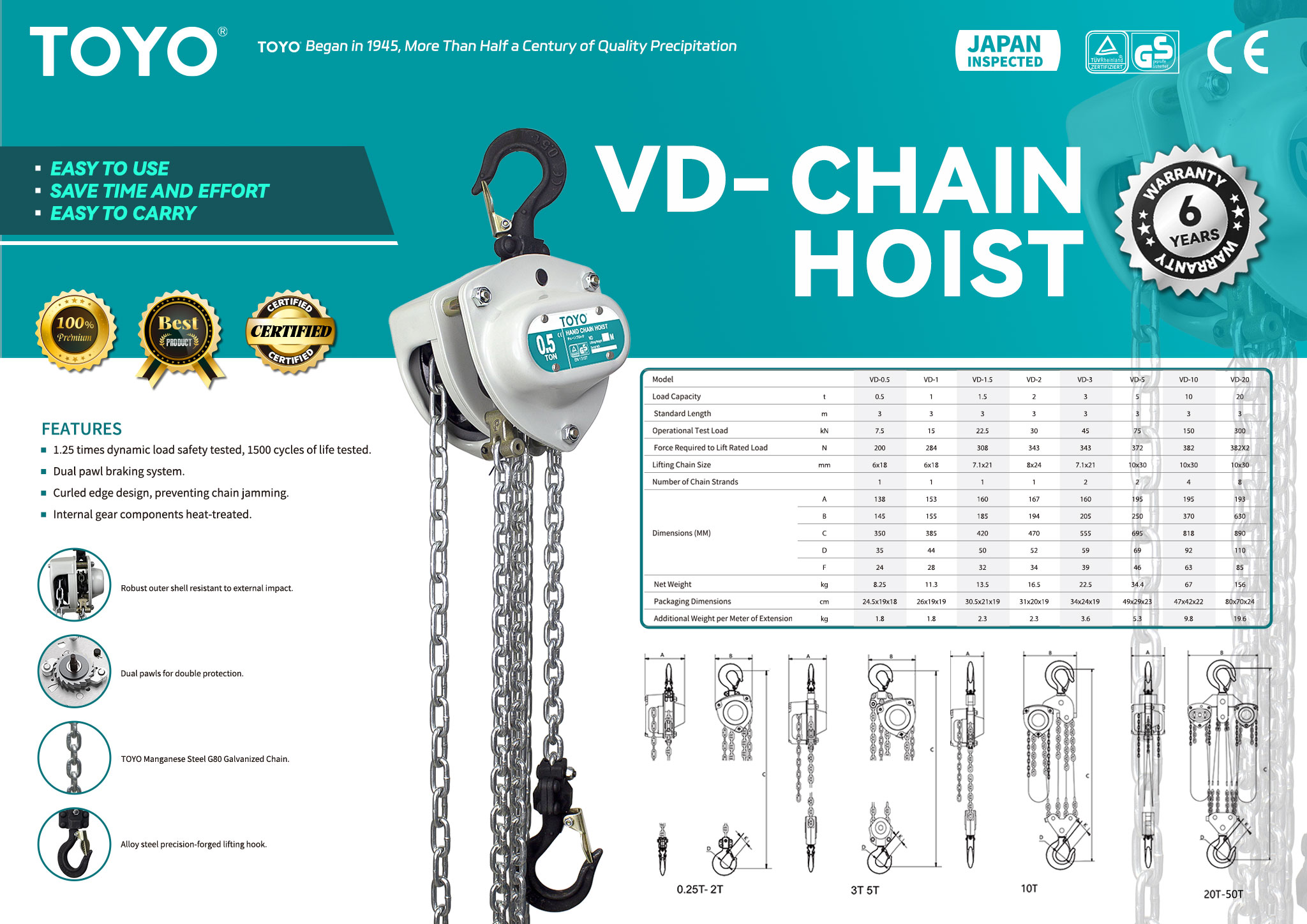

Specs of VD Manual Chain Hoist

BASIC INTRODUCTION

It has passed the safety test with a dynamic load of 1.25 times and undergone a life test of 1500 cycles. It is equipped with a dual pawl braking system.

FEATURES

1.25 times dynamic load safety tested, 1500 cycles of life tested.
Dual pawl braking system.
Curled edge design, preventing chain jamming.
Internal gear components heat-treated.

APPLICATION INDUSTRIES

The VD-Chain Hoist can be applied in industries such as machinery manufacturing, construction, warehousing and logistics, and ship docks, which require lifting and handling of heavy objects. It is used for the hoisting and moving operations of heavy objects in various scenarios, including equipment installation, cargo loading and unloading, and maintenance work.

Product parameters

Model		VD-0.5	VD-1	VD-1.5	VD-2	VD-3	VD-5	VD-10	VD-20
Load Capacity	t	0.5	1	1.5	2	3	5	10	20
Standard Length	m	3	3	3	3	3	3	3	3
Operational Test Load	kN	7.5	15	22.5	30	45	75	150	300
Force Required to Lift Rated Load	N	200	284	308	343	343	372	382	382X2
Lifting Chain Size	mm	6×18	6×18	7.1×21	8×24	7.1×21	10×30	10×30	10×30
Number of Chain Strands		1	1	1	1	2	2	4	8
Dimensions (MM)	A	138	153	160	167	160	195	195	193
	B	145	155	185	194	205	250	370	630
	C	350	385	420	470	555	695	818	890
	D	35	44	50	52	59	69	92	110
	F	24	28	32	34	39	46	63	85
Net Weight	kg	8.25	11.3	13.5	16.5	22.5	34.4	67	156
Packaging Dimensions	cm	24.5x19x18	26x19x19	30.5x21x19	31x20x19	34x24x19	49x29x23	47x42x22	80x70x24
Additional Weight per Meter of Extension	kg	1.8	1.8	2.3	2.3	3.6	5.3	9.8	19.6
