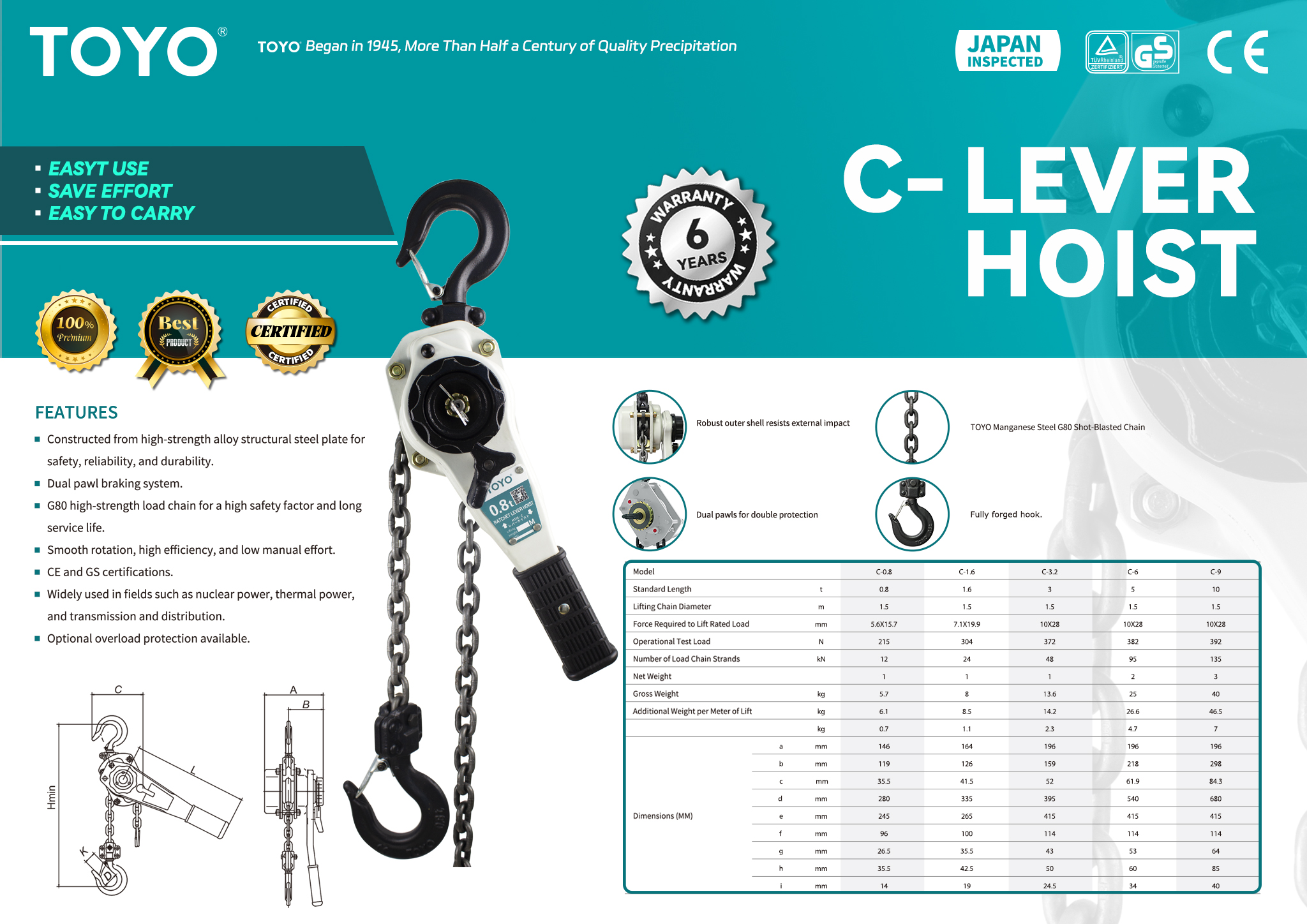

C Manual Lever Hoist

Constructed from high-strength alloy structural steel plate forsafety, reliability, and durability.
Dual pawl braking system.
G80 high-strength load chain for a high safety factor and longservice life.
Smooth rotation, high efficiency, and low manual effort.
CE and GS certifications.
Widely used in fields such as nuclear power, thermal power,and transmission and distribution.
Optional overload protection available.

Specs of C Manual Lever Hoist

BASIC INTRODUCTION

This C-LEVER HOIST is constructed from high-strength alloy structural steel plates, equipped with a dual pawl braking system. It uses TOYO manganese steel G80 shot-blasted chains (G80 high-strength load chains), has a fully forged hook, and has obtained CE and GS certifications. It also has an optional overload protection function.

FEATURES

Constructed from high-strength alloy structural steel plate for safety, reliability, and durability.Dual pawl braking system. G80 high-strength load chain for a high safety factor and long service life.
Smooth rotation, high efficiency, and low manual effort.CE and GS certifications.Widely used in fields such as nuclear power, thermal power,and transmission and distribution.
Optional overload protection available.

APPLICATION INDUSTRIES

The C-LEVER HOIST, a reliable lever block chain hoist, is widely used in fields such as nuclear power, thermal power, and power transmission and distribution. It serves as an essential tool in operation scenarios involving the lifting and handling of heavy objects within these industries. Its robust design and precision engineering make it ideal for tasks like the movement and lifting of heavy equipment during installation and maintenance processes. As a trusted chain block manufacturer, it ensures safety, efficiency, and durability, meeting the demanding requirements of modern industrial applications while delivering consistent performance in challenging environments.

Product parameters

Model			C-0.8	C-1.6	C-3.2	C-6	C-9
Standard Length		t	0.8	1.6	3	5	10
Lifting Chain Diameter		m	1.5	1.5	1.5	1.5	1.5
Force Required to Lift Rated Load		mm	5.6X15.7	7.1X19.9	10X28	10X28	10X28
Operational Test Load		N	215	304	372	382	392
Number of Load Chain Strands		kN	12	24	48	95	135
Net Weight			1	1	1	2	3
Gross Weight		kg	5.7	8	13.6	25	40
Additional Weight per Meter of Lift		kg	6.1	8.5	14.2	26.6	46.5
Dimensions (MM)		kg	0.7	1.1	2.3	4.7	7
	a	mm	146	164	196	196	196
	b	mm	119	126	159	218	298
	c	mm	35.5	41.5	52	61.9	84.3
	d	mm	280	335	395	540	680
	e	mm	245	265	415	415	415
	f	mm	96	100	114	114	114
	g	mm	26.5	35.5	43	53	64
	h	mm	35.5	42.5	50	60	85
	i	mm	14	19	24.5	34	40
