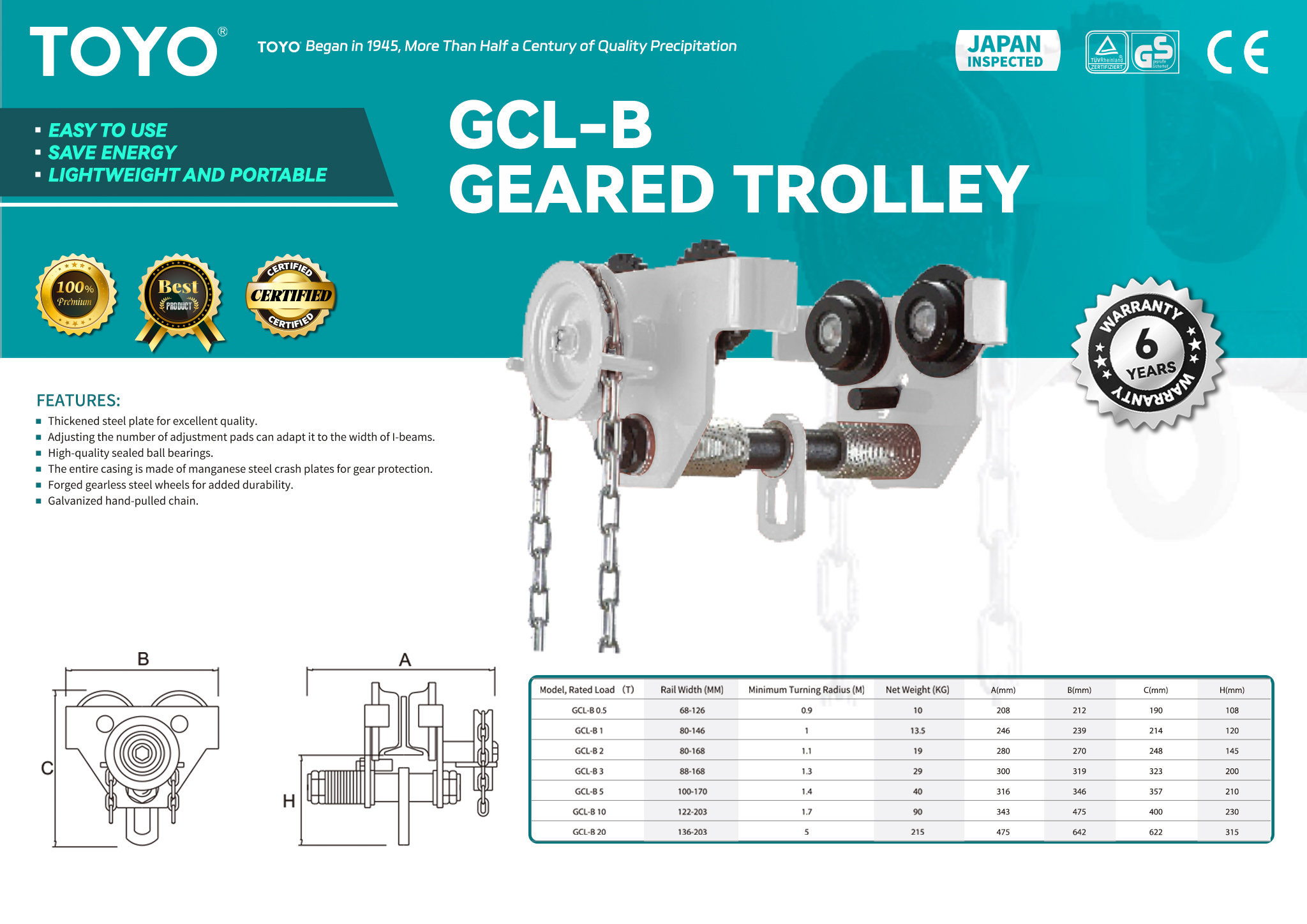

GCL-B Geared Trolley

Thickened steel plate for excellent quality.
Adjusting the number of adjustment pads can adapt it to the width of l-beams.
High-quality sealed ball bearings.
The entire casing is made of manganese steel crash plates for gear protection.
Forged gearless steel wheels for added durability.
Galvanized hand-pulled chain.

Specs of GCL-B Geared Trolley

BASIC INTRODUCTION

The TOYO GCL – B Geared Trolley features:

Constructed from thickened steel plates
Adjustable to I-beam widths by modifying adjustment pad quantity
Equipped with high-quality sealed ball bearings
Manganese steel crash plate casing for gear protection
Forged gearless steel wheels
Includes galvanized hand-pulled chain

FEATURES

Durable Construction: Made of thickened steel plates for superior quality
Adjustable Width: Accommodates different I-beams by changing adjustment pads
Smooth Operation: High-quality sealed ball bearings
Gear Protection: Full manganese steel crash plate casing
Long-lasting Wheels: Forged gearless steel wheels
Corrosion-resistant Chain: Galvanized hand-pulled chain

APPLICATION INDUSTRIES

Industrial Production
- Handling raw materials, components and semi-finished products in factories
Warehousing and Logistics
- Loading, unloading and moving goods in storage and distribution centers
Construction
- Lifting and positioning building materials
Equipment Installation and Maintenance
- Hoisting machinery for installation or repair work

The formatting maintains all original specifications while presenting the information in a more organized, scannable format with clear section headings and bullet points for improved readability.

Product parameters

Model, Rated Load （T）	Rail Width (MM)	Minimum Turning Radius (M)	Net Weight (KG)	A(mm)	B(mm)	C(mm)	H(mm)
GCL-B 0.5	68-126	0.9	10	208	212	190	108
GCL-B 1	80-146	1	13.5	246	239	214	120
GCL-B 2	80-168	1.1	19	280	270	248	145
GCL-B 3	88-168	1.3	29	300	319	323	200
GCL-B 5	100-170	1.4	40	316	346	357	210
GCL-B 10	122-203	1.7	90	343	475	400	230
GCL-B 20	136-203	5	#215	475	642	622	315

Facing complex operational scenarios, our custom services provide solutions beyond standard limits. As a trusted chain block manufacturer, we customize equipment—from structural design to component selection—based on your parameters and conditions. Whether for precision tasks in tight spaces or harsh environments like high temperatures, we deliver tailored solutions, including plain trolley 1 ton systems. Adhering to safety standards, we ensure unique performance, reliability, and stability, offering robust support for your specialized lifting needs.
