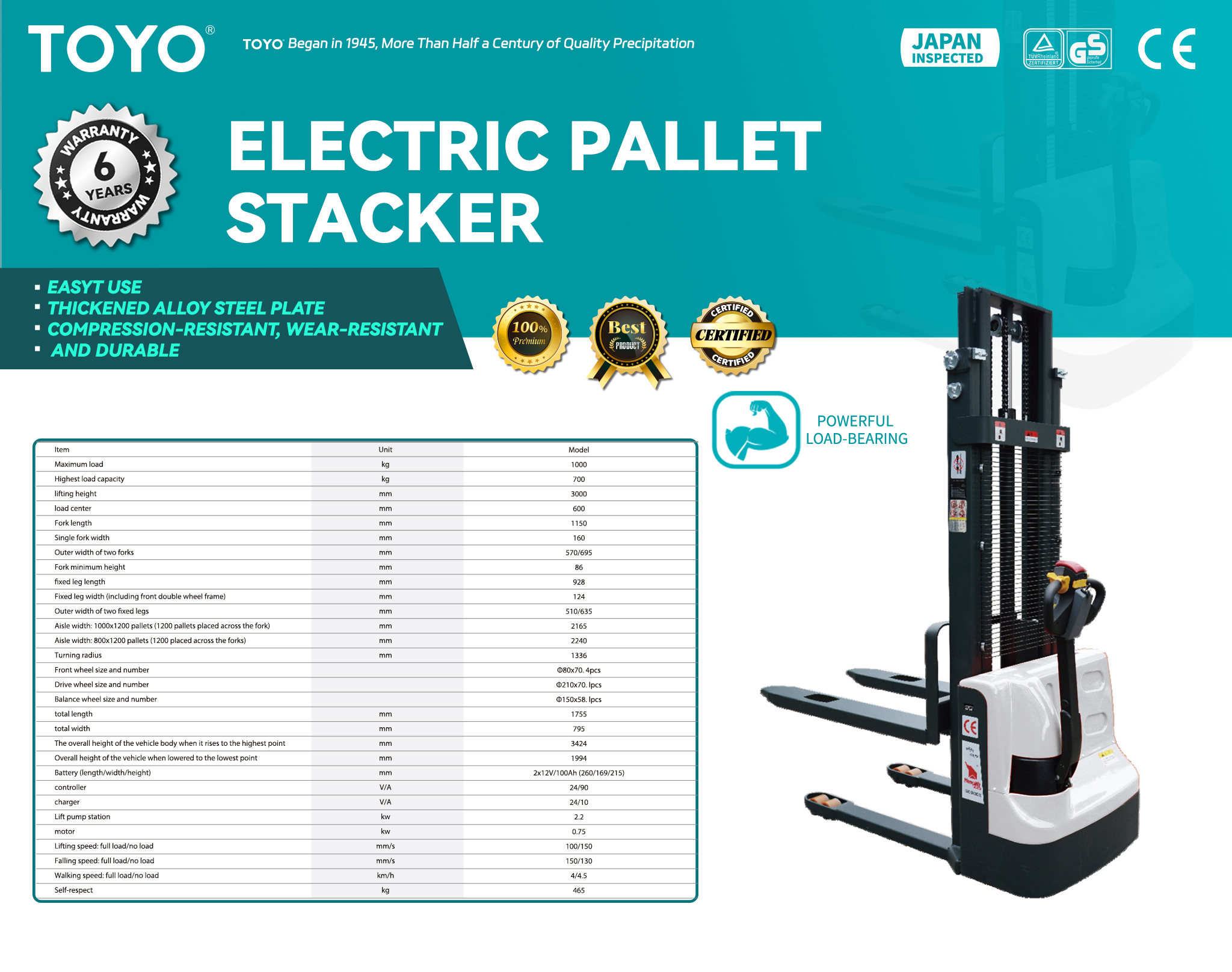

ACL10 Electric Pallet Stacker

Item	Unit	Model
Maximum load	kg	1000
Highest load capacity	kg	700
lifting height	mm	3000
load center	mm	600
Fork length	mm	1150
Single fork width	mm	160
Outer width of two forks	mm	570/695
Fork minimum height	mm	86
fixed leg length	mm	928
Fixed leg width (including front double wheel frame)	mm	124
Outer width of two fixed legs	mm	510/635
Aisle width: 1000×1200 pallets (1200 pallets placed across the fork)	mm	2165
Aisle width: 800×1200 pallets (1200 placed across the forks)	mm	2240
Turning radius	mm	1336
Front wheel size and number		Φ80×70. 4pcs
Drive wheel size and number		Φ210×70. lpcs
Balance wheel size and number		Φ150×58. lpcs
total length	mm	1755
total width	mm	795
The overall height of the vehicle body when it rises to the highest point	mm	3424
Overall height of the vehicle when lowered to the lowest point	mm	1994
Battery (length/width/height)	mm	2x12V/100Ah (260/169/215)
controller	V/A	24/90
charger	V/A	10月24日
Lift pump station	kw	2.2
motor	kw	0.75
Lifting speed: full load/no load	mm/s	100/150
Falling speed: full load/no load	mm/s	150/130
Walking speed: full load/no load	km/h	4/4.5
Self-respect	kg	465
